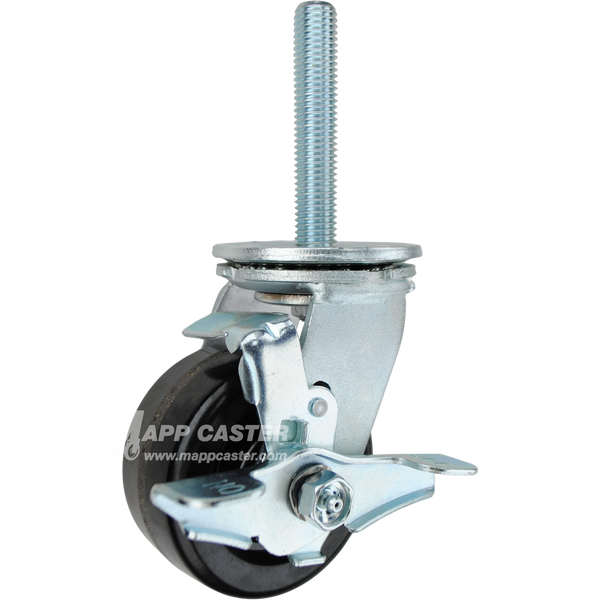

4" x 2" Phenolic Wheel Swivel Brake Caster, 3/4"-10 x 4 Threaded Stem - 800 Lbs Capacity

$22.00

Part # 7RTP042DURBTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

4" x 2" Phenolic Wheel Swivel Brake Caster, 3/4"-10 x 4 Threaded Stem - Part # 7RTP042DURBTLB

Phenolic wheels are a great alternative to steel wheels. They provide similar capacity, but better floor protection, slightly quieter rolling, do not rust, & are more economically priced.

Phenolic wheels are made using phenolic resin mixed with macerated canvas which yields a high capacity & high impact wheel. They have hard treads & will not flat spot over time which is why they are often used on equipment that is under constant heavy loads, such as storage bins, dumpsters, & BBQ Pits. Phenolic wheels are resistant to oil, grease, solvents, non-metallic, & non-sparking.

We recommend phenolic wheels for many applications, however, if you need more floor protection, a cushioned ride, or a quiet rolling wheel, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 800 Lbs.	Stem Size: 3/4"
Wheel Diameter:4"	Stem Thread Pitch:10
Tread Width: 2"	Stem Length:4"
Tread Shape: Flat	Overall Height:5-5/8"
Bearing Type:See Bearings Options	Caster Rig Material Type:Cold Rolled Steel
Wheel Type: Phenolic	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer:Shore D 90 (+/-5)	Swivel Radius: 3-1/4"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 250˚F	Weight: 4.634 Lbs
Link to Replacement Wheel: LPH420	Link to Matching Swivel Caster: 7RTP042DURB

Capacity: 800 lbs.

Wheel Diameter:4"

Tread Width:2"

Stem Size:3/4"

Stem Thread Pitch: 10

Stem Length: 4"

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Phenolic

Wheel Durometer:Shore D 90 (+/-5)

Overall Height:5-5/8"

Swivel Radius:3-1/4"

Swivel Construction: Double Ball Raceway - 5/8" Kingpin

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-45˚F to 250˚F

Weight:4.634 Lbs

Link to Replacement Wheel:LPH420

Link to Matching Swivel Caster:7RTP042DURB
