4" x 2" Solid Polyurethane Elastomer Wheel Swivel Caster - 1,000 Lbs Capacity

Part # 146HUBB420S

Availablity: Usually ships in 24-48 hours
+


4" x 2" Solid Polyurethane Elastomer Wheel Swivel Caster - Part #: 146HUBB420S

Solid cast polyurethane elastomer wheels are similar to solid poly wheels but offer the higher capacities. These wheels are 100% washable, steam cleanable & chemical resistant. These wheels have excellent impact strength, abrasion resistance & compression resistance. They are easy to start rolling and offer a smooth ride. The polyurethane elastomer tread is mechanically locked to a glass filled nylon core which greatly decreases the chance of tread de-bonding failures. These wheels are often used in places poly on metal core wheels cannot be used or if more capacity & durability is needed compared to the other polyurethane wheels.


Specifications:

Load Capacity (lbs.): 1,000 Link to Matching Rigid Caster: 146HUBB420R
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Soild Cast Polyurethane Elastomer Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearing

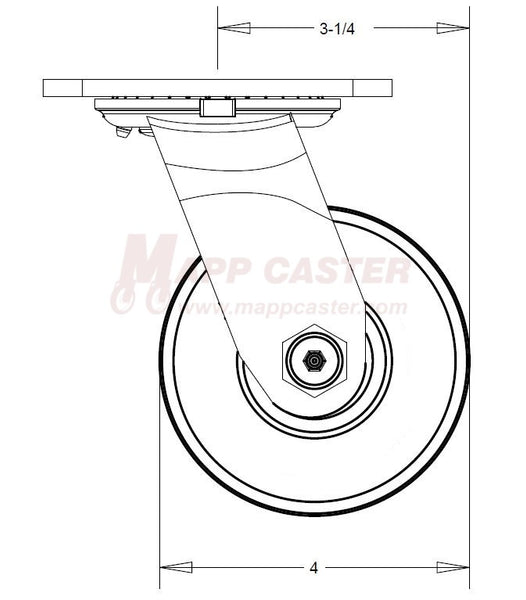

Swivel Radius:  3-3/16"

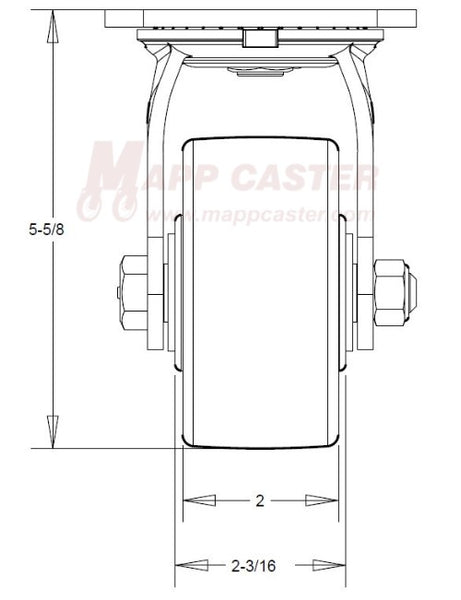

Overall Height: 5-5/8" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore D 65 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Grey Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LHU40JI84  Weight: 4.15 lbs.

PRODUCT DETAILS

4" x 2" Solid Polyurethane Elastomer Wheel Swivel Caster - Part #: 146HUBB420S

Solid cast polyurethane elastomer wheels are similar to solid poly wheels but offer the higher capacities. These wheels are 100% washable, steam cleanable & chemical resistant. These wheels have excellent impact strength, abrasion resistance & compression resistance. They are easy to start rolling and offer a smooth ride. The polyurethane elastomer tread is mechanically locked to a glass filled nylon core which greatly decreases the chance of tread de-bonding failures. These wheels are often used in places poly on metal core wheels cannot be used or if more capacity & durability is needed compared to the other polyurethane wheels.


Specifications:

Load Capacity (lbs.): 1,000 Link to Matching Rigid Caster: 146HUBB420R
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Soild Cast Polyurethane Elastomer Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearing
Swivel Radius:  3-3/16"
Overall Height: 5-5/8" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore D 65 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Grey Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LHU40JI84  Weight: 4.15 lbs.
