5" x 1-1/4" Heavy Duty Plastic Stainless Steel Swivel Caster with Total Locking Brake - 350 Lbs. Capacity

Part # Q515001HDPSWB

Availablity: Usually ships in 5-7 Business Days
+


5" x 1-1/4" Heavy Duty Plastic Wheel Stainless Steel Swivel Caster with Total Locking Brake - Part # Q515001HDPSWB

Plastic caster wheels are solid injected molded polyolefin which yields a high shock load, impact resistant, and abrasion resistant wheel. These wheels are lightweight yet hold high weight capacities and are also non-marking. They also are washable, impervious to water, and highly resistant to solvents, oils, grease, most chemicals, and cleaning solutions. These wheels do not flat spot over time like softer tread wheels. It is because of these many features and economical price point that plastic wheel casters are very popular.

The stainless steel on this caster significant extends the life of the caster, especially in wet environments. Wet environments are harsh on regular casters & causes them to ultimately rust & seize up.

We recommend these wheels for many applications, however, if you need a smooth cushioned ride, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

Total Locking casters are the most secure brake casters you can get. Total locking casters lock the wheel & swivel section of your casters to minimize any movement.

Specifications:

Load Capacity (lbs.): 350

Link to Matching Swivel Caster: Q515001HDPSSWB

Link to Matching Rigid Caster: Q5150R01HDPSWB

Wheel Diameter: 5" Caster Rig Material Type: Stainless Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Stainless Steel
Wheel Type: Plastic (Polyolefin) Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Plain Bore Swivel Radius: 4"
Overall Height: 6-1/8" Swivel Construction: Double Ball Raceway

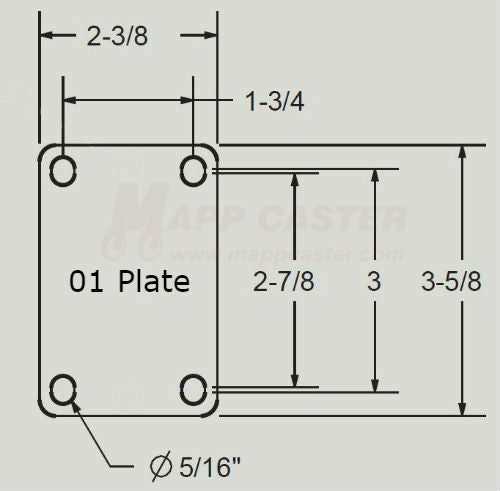

Temp Range: -20 to 180F Mounting Plate:  2-3/8" x 3-5/8"
Wheel Durometer: 70 Shore D (+/-5) Bolt Hole Pattern:  1-3/4" x 2-7/8" to 3"
Wheel Color: Black Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel:  QHDP5K3 Weight: 2.15 Lbs

PRODUCT DETAILS

5" x 1-1/4" Heavy Duty Plastic Wheel Stainless Steel Swivel Caster with Total Locking Brake - Part # Q515001HDPSWB

Plastic caster wheels are solid injected molded polyolefin which yields a high shock load, impact resistant, and abrasion resistant wheel. These wheels are lightweight yet hold high weight capacities and are also non-marking. They also are washable, impervious to water, and highly resistant to solvents, oils, grease, most chemicals, and cleaning solutions. These wheels do not flat spot over time like softer tread wheels. It is because of these many features and economical price point that plastic wheel casters are very popular.

The stainless steel on this caster significant extends the life of the caster, especially in wet environments. Wet environments are harsh on regular casters & causes them to ultimately rust & seize up.

We recommend these wheels for many applications, however, if you need a smooth cushioned ride, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

Total Locking casters are the most secure brake casters you can get. Total locking casters lock the wheel & swivel section of your casters to minimize any movement.

Specifications:

Load Capacity (lbs.): 350

Link to Matching Swivel Caster: Q515001HDPSSWB

Link to Matching Rigid Caster: Q5150R01HDPSWB

Wheel Diameter: 5" Caster Rig Material Type: Stainless Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Stainless Steel
Wheel Type: Plastic (Polyolefin) Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Plain Bore Swivel Radius: 4"
Overall Height: 6-1/8" Swivel Construction: Double Ball Raceway
Temp Range: -20 to 180F Mounting Plate:  2-3/8" x 3-5/8"
Wheel Durometer: 70 Shore D (+/-5) Bolt Hole Pattern:  1-3/4" x 2-7/8" to 3"
Wheel Color: Black Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel:  QHDP5K3 Weight: 2.15 Lbs
