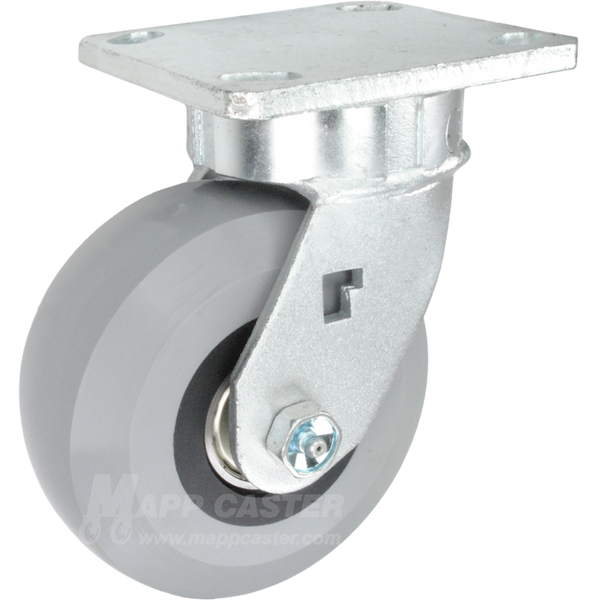

5" x 2" Solid Elastomer Wheel Kingpinless Swivel Caster - 1,400 Lbs Capacity

$118.54

Part # P5105201HU1

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

5" x 2" Solid Elastomer Wheel Kingpinless Swivel Caster - Part # P5105201HU1

Solid cast polyurethane elastomer wheels are similar to solid poly wheels but offer higher capacities, have excellent impact strength, abrasion resistance & compression resistance. The polyurethane elastomer tread is mechanically locked to a glass filled nylon core which greatly decreases the chance of tread de-bonding failures. They are easy to start rolling & offer a smooth ride. These wheels are 100% washable, steam cleanable & chemical resistant.

These wheels are often used in places poly on metal core wheels cannot be used or if more capacity & durability is needed compared to the other polyurethane wheels.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 1,400 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned	Overall Height:6-1/2"
Bearing Type:Ball Bearing	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Solid Cast Polyurethane Elastomer	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 65 (+/-5)	Swivel Radius: 4"
Wheel Color: Grey	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -50˚F to 180˚F	Weight: 6.264 Lbs
Link to Replacement Wheel: LHU50JI64	Link to Matching Rigid Caster: P5005201HU2

Capacity: 1,400 lbs.

Wheel Diameter:5"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Slightly Crowned

Bearing Type: Ball Bearing

Wheel Type: Solid Cast Polyurethane Elastomer

Wheel Durometer:Shore D 65 (+/-5)

Overall Height:6-1/2"

Swivel Radius:4"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Grey

Temp Range:-50˚F to 180˚F

Weight:6.264 Lbs

Link to Replacement Wheel:LHU50JI64

Link to Matching Rigid Caster:P5005201HU2

PRODUCT DETAILS

5" x 2" Solid Elastomer Wheel Kingpinless Swivel Caster - Part # P5105201HU1

These wheels are often used in places poly on metal core wheels cannot be used or if more capacity & durability is needed compared to the other polyurethane wheels.

Specifications:

Capacity: 1,400 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned	Overall Height:6-1/2"
Bearing Type:Ball Bearing	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Solid Cast Polyurethane Elastomer	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 65 (+/-5)	Swivel Radius: 4"
Wheel Color: Grey	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -50˚F to 180˚F	Weight: 6.264 Lbs
Link to Replacement Wheel: LHU50JI64	Link to Matching Rigid Caster: P5005201HU2
