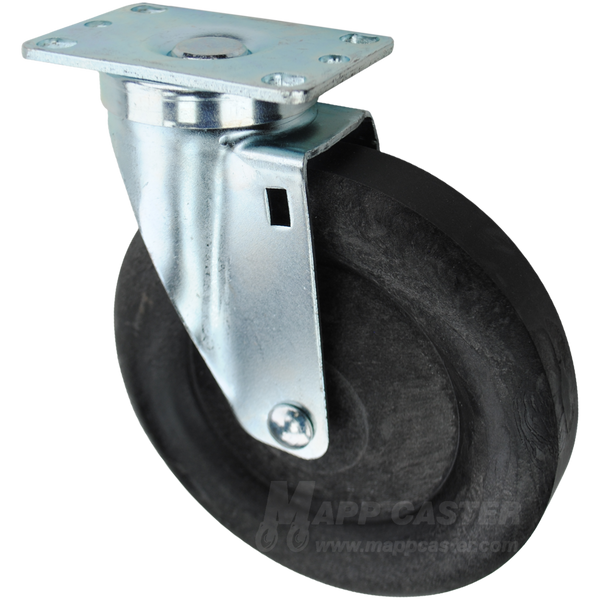

6" x 1-3/8" High Temp Nylon Wheel Swivel Caster, 2-3/8" x 3-5/8" Top Plate - 350 lbs Capacity

$37.41

Part # Q526001HEAT

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

6" x 1-3/8" High Temp Nylon Wheel Swivel Caster, 2-3/8" x 3-5/8" Top Plate - Part # Q526001HEAT

High Temperature Heat Eater caster wheels are designed for wet & dry high heat environments. Made of a glass filled nylon mixture, the hard tread rolls easily while providing the best impact resistance out of high temp epoxy & high temp phenolic. This Wheel has excellent resistance to water, oil, grease, most acids, chemicals & cleaning solutions. Designed to handle temperatures up to 475°F continuously & 525°F intermittently, with intermittent exposure defined as 30 minutes in heat followed by a 30 minute cooling cycle.

* Offers a quieter rolling experience compared to high temp epoxy, high temp phenolic & steel wheels. If temperatures exceed 525°F consider our high temp epoxy & steel wheels.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 350 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:6"	Bolt Hole Pattern:1-3/4" x 2-7/8" to 3"
Tread Width:1-3/8"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Flat	Overall Height:7-1/8"
Bearing Type:Bushing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type: High Temp Nylon	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 85 (-/+ 5)	Swivel Radius: 4-15/32"
Wheel Color: White	Swivel Construction: Double Ball Raceway
Temp Range: -40˚F to 475˚F (525˚F Intermittent)	Weight: 2.742 Lbs
Link to Replacement Wheel: R6171C	Link to Matching Rigid Caster: Q5260R01HEAT

Capacity: 350 Lbs.

Wheel Diameter:6"

Tread Width:1-3/8"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Flat

Bearing Type: Bushing

Wheel Type: High Temp Nylon

Wheel Durometer:Shore D 85 (+/-5)

Overall Height:7-1/8"

Swivel Radius:4-15/32"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:White

Temp Range:-40˚F to 475˚F (525˚F Intermittent)

Weight:2.742 Lbs

Link to Replacement Wheel:R6171C

Link to Matching Rigid Caster:Q5260R01HEAT
