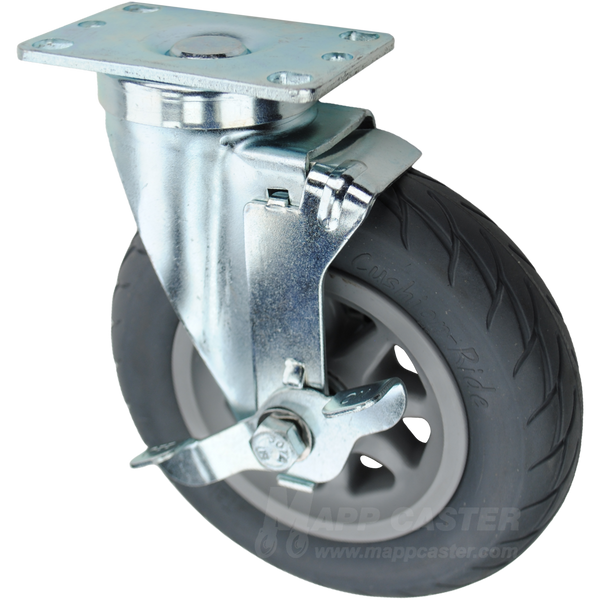

6" x 1-1/4" No-Matic Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Top Plate - 150 lbs Capacity

$36.54

Part # Q526001NTPRTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

6" x 1-1/4" NoMatic Cushion Wheel Swivel Caster - Part # Q526001NTPRTLB

These thermoplastic rubber (TPR) caster wheels offer the cushioned ride & shock absorption of pneumatic wheels without the risk of flats or maintenance. Their resilient, solid construction delivers quiet operation, excellent floor protection & a smooth rolling experience on a wide variety of surfaces. The crowned tread profile reduces rolling resistance, making swiveling, pivoting & maneuvering easier while remaining non-marking & safe for hardwood, tile, epoxy & other finished floors.

These wheels are resistant to water, weather, grease, oil, most chemicals & common cleaning solutions. They also naturally reject dirt, metal shavings & other floor debris that can interfere with rolling performance. Their outstanding durability, smooth ride & low-maintenance design make them an excellent choice for warehouses, hospitals, schools, commercial kitchens, retail stores, offices, workshops & countless other general-purpose applications.

Specifications:

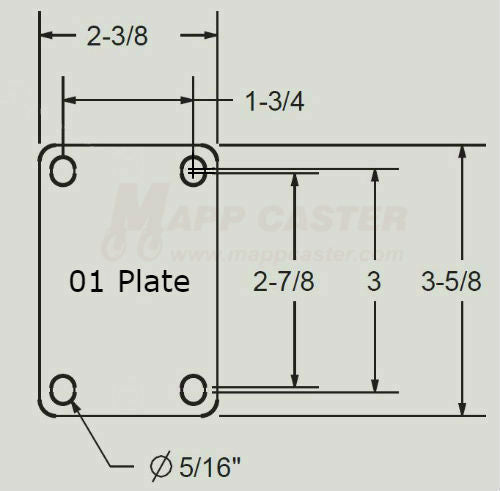

Capacity: 150 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:6"	Bolt Hole Pattern:1-3/4" x 2-7/8" to 3"
Tread Width:1-1/4"	Mounting Bolt Size:5/16" or Smaller
Tread Shape: Crowned	Overall Height:7-1/8"
Bearing Type:Ball Bearing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Thermoplastic Rubber (TPR)	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore A 65 (+/-5)	Swivel Radius: 4-15/32"
Wheel Color: Grey	Swivel Construction: Double Ball Raceway
Temp Range: -20˚F to 180˚F	Weight: 3.048 Lbs
Link to Replacement Wheel: 8009923	Link to Matching Rigid Caster: Q5260R01NTPR

Capacity: 150 Lbs.

Wheel Diameter:6"

Tread Width:1-1/4"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Crowned

Bearing Type: Ball Bearing

Wheel Type: Thermoplastic Rubber (TPR)

Wheel Durometer:Shore A 65 (+/-5)

Overall Height:7-1/8"

Swivel Radius:4-15/32"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Grey

Temp Range:-20˚F to 180˚F

Weight:3.048 Lbs

Link to Replacement Wheel:8009923

Link to Matching Rigid Caster:Q5260R01NTPR
