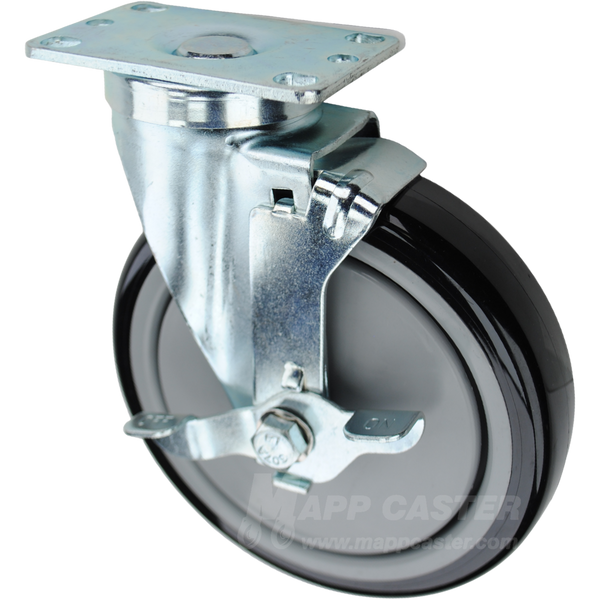

6" x 1-1/4" Polyurethane on Polyolefin Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Top Plate - 350 Lbs Capacity

$25.41

Part # Q526001PLYTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

6" x 1-1/4" Polyurethane on Polyolefin Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Top Plate - Part # Q526001PLYTLB

Designed as a budget friendly polyurethane option, our black & grey polyurethane on polyolefin wheels offer good load capacities while remaining floor safe for use on tile, hardwood & other finished surfaces. Compared to rubber wheels, they provide greater capacities & lower rolling resistance, though the firmer Shore A 95 tread is not as soft or cushioning as rubber. This wheel is also comes standard with a precision ball bearing to make a great preforming wheel.

The tread is mechanically bonded to the core, making it better suited for dry environments. Wet conditions, prolonged UV exposure & extreme temperatures can accelerate wear & potentially lead to de-treading over time.

Specifications:

Capacity: 350 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:6"	Bolt Hole Pattern:1-3/4" x 2-7/8" to 3"
Tread Width:1-1/4"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Moderately Crowned	Overall Height:7-1/8"
Bearing Type:Ball Bearings	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Polyurethane on Polyolefin	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore A 95 (+/-5)	Swivel Radius: 4-15/32"
Wheel Color: Black & Grey	Swivel Construction: Double Ball Raceway
Temp Range: -20˚F to 180˚F	Weight: 2.466 Lbs
Link to Replacement Wheel: LPP60GA44	Link to Matching Rigid Caster: Q5260R01PLY

Capacity: 350 Lbs.

Wheel Diameter:6"

Tread Width:1-1/4"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Moderately Crowned

Bearing Type: Ball Bearings

Wheel Type: Polyurethane on Polyolefin

Wheel Durometer:Shore A 95 (+/-5)

Overall Height:7-1/8"

Swivel Radius:4-15/32"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Black & Grey

Temp Range:-20˚F to 180˚F

Weight:2.466 Lbs

Link to Replacement Wheel:LPP60GA44

Link to Matching Rigid Caster:Q5260R01PLY
