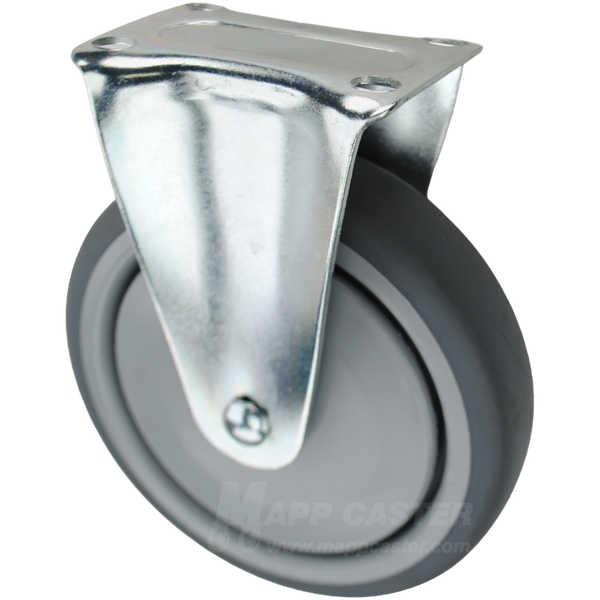

6" x 1-1/4" Thermoplastic Rubber Wheel Rigid Caster, 2-3/8" x 3-5/8" Top Plate - 300 lbs Capacity

$15.46

Part # Q5260R01MIR

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

6" x 1-1/4" Thermoplastic Rubber Wheel Rigid Caster, 2-3/8" x 3-5/8" Top Plate - Part # Q5260R01MIR

Thermoplastic rubber (TPR) wheels are one of our favorite all-purpose caster wheels. Its resilient rubber tread cushions loads, reduces noise & protects hardwood tile & finished floors from marks & damage. TPR wheels are highly resistant to water, chemicals, steam & outdoor weather, while naturally rejecting dirt & floor debris that can hinder performance. Their combination of durability, smooth rolling & non-marking floor protection makes them an excellent choice for hospitals, schools, commercial kitchens, warehouses, retail stores, offices & countless other general-purpose applications.

Specifications:

Capacity: 300 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:6"	Bolt Hole Pattern:1-3/4" x 2-7/8" to 3"
Tread Width: 1-1/4"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Moderately Crowned	Overall Height:7-1/8"
Bearing Type:Ball Bearing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Thermoplastic Rubber (TPR)	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore A 65 (+/-5)	Temp Range: -20˚F to 180˚F
Wheel Color: Grey	Weight: 1.744 Lbs
Link to Replacement Wheel: R6193B	Link to Matching Swivel Caster: Q526001MIR

Capacity: 300 lbs.

Wheel Diameter:6"

Tread Width:1-1/4"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Crowned

Bearing Type: Bushing

Wheel Type: Thermoplastic Rubber (TPR)

Wheel Durometer:Shore A 65 (+/-5)

Overall Height:7-1/8"

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Grey

Temp Range:-20˚F to 180˚F

Weight:1.744 Lbs

Link to Replacement Wheel:R6193B

Link to Matching Swivel Caster:Q526001MIR
