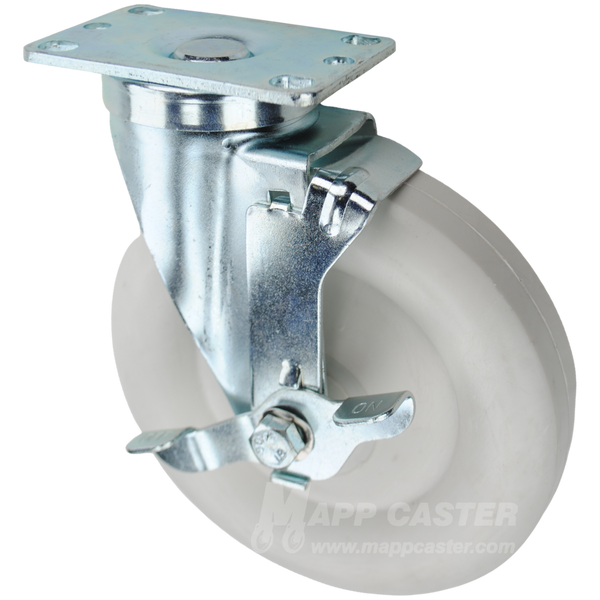

6" x 1-3/8" Retort Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Top Plate - 350 lbs Capacity

$30.26

Part # Q526001RETBTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

6" x 1-3/8" Retort Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Top Plate - Part # Q526001RETBTLB

Retort wheels are durable, non-marking hard plastic wheels ideal for food processing environments like meat packing plants. Their white color makes cleanliness easy to verify, and they are resistant to cracking, chipping, water, solvents, oils, grease, and most chemicals. Lightweight yet capable of supporting heavy loads, retort wheels are washable, steam-cleanable, and offer a higher temperature rating than polyolefin or nylon wheels—making them perfect for demanding, hygienic applications.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 350 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:6"	Bolt Hole Pattern:1-3/4" x 2-7/8" to 3"
Tread Width:1-3/8"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Flat	Overall Height:7-1/8"
Bearing Type:Bushing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type: Retort	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 75 (-/+ 5)	Swivel Radius: 4-15/32"
Wheel Color: White	Swivel Construction: Double Ball Raceway
Temp Range: -20˚F to 180˚F	Weight: 2.872 Lbs
Link to Replacement Wheel: R6121C	Link to Matching Rigid Caster: Q5260R01RETB

Capacity: 350 Lbs.

Wheel Diameter:6"

Tread Width:1-3/8"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Flat

Bearing Type: Bushing

Wheel Type: Polyolefin

Wheel Durometer:Shore D 75 (+/-5)

Overall Height:7-1/8"

Swivel Radius:4-15/32"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:White

Temp Range:-20˚F to 180˚F

Weight:2.872 Lbs

Link to Replacement Wheel:R6121C

Link to Matching Rigid Caster:Q5260R01RETB
