Home / All / 6-7/8" x 2" Ductile Steel Flanged Wheel Kingpinless Rigid Caster - 2,000 Lbs Capacity

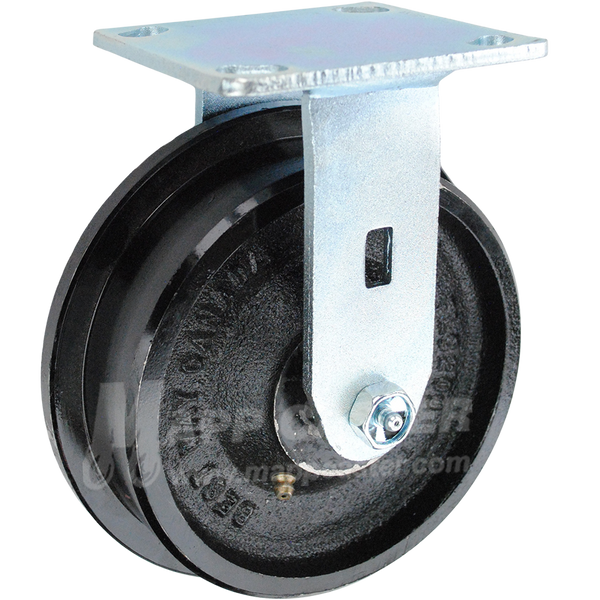

6-7/8" x 2" Ductile Steel Flanged Wheel Kingpinless Rigid Caster - 2,000 Lbs Capacity

$130.18

Part # P50062DFL

Availablity: Usually ships in 24-48 hours
+

6-7/8" x 2" Ductile Steel Flanged Wheel Kingpinless Rigid Caster - Part # P50062DFL

Ductile Flanged wheels are designed to roll on rails & are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 2000

Link to Matching Swivel Caster: No Matching Swivel Caster

Inner: Wheel Diameter: 6"

Outer Wheel Diameter: 6-7/8"

 Wheel Durometer: Brinell 145

Overall Tread Width: 2"

Roll-able Tread Width: 1-1/2"

Flange Width: 1/2"

 Wheel Color: Black
Wheel Type: Ductile Flanged
 Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Roller Bearing
 		Swivel Radius: N/A
Overall Height: 7-1/2" Swivel Construction: N/A
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
Mounting Bolt Size: 3/8" or Smaller Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Link to Replacement Wheel: 7FL6200BST
 		Weight: 12.204 Lbs

PRODUCT DETAILS

6-7/8" x 2" Ductile Steel Flanged Wheel Kingpinless Rigid Caster - Part # P50062DFL

Ductile Flanged wheels are designed to roll on rails & are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 2000

Link to Matching Swivel Caster: No Matching Swivel Caster

Inner: Wheel Diameter: 6"

Outer Wheel Diameter: 6-7/8"

 Wheel Durometer: Brinell 145

Overall Tread Width: 2"

Roll-able Tread Width: 1-1/2"

Flange Width: 1/2"

 Wheel Color: Black
Wheel Type: Ductile Flanged
 Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Roller Bearing
 		Swivel Radius: N/A
Overall Height: 7-1/2" Swivel Construction: N/A
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
Mounting Bolt Size: 3/8" or Smaller Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Link to Replacement Wheel: 7FL6200BST
 		Weight: 12.204 Lbs
