$153.75
Part # LSV60JI84

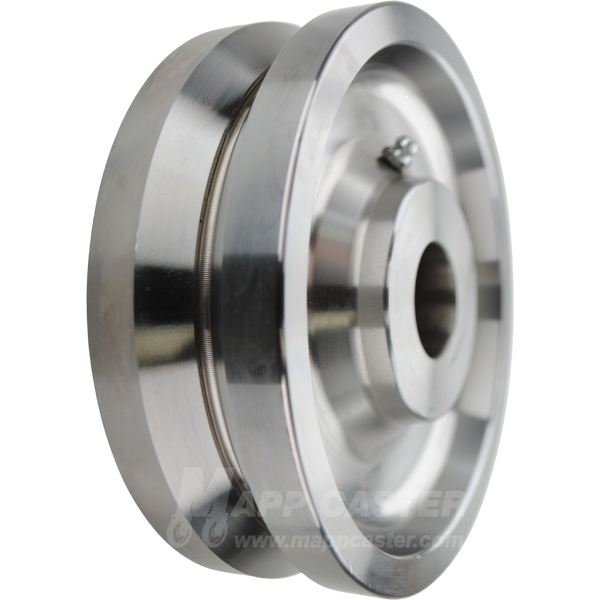

Availablity: Usually ships in 5-7 Business DaysThis solid steel V-groove wheel is engineered for exceptionally low rolling resistance, excellent wear resistance, and high static and dynamic load capacity. Despite its compact size, it offers an impressive load rating, making it an excellent choice for demanding applications. The durable zinc-plated finish provides added corrosion resistance, while the versatile design makes this wheel particularly popular for automatic gate systems and other rolling equipment.
V-groove wheels are designed to guide and support equipment by rolling along inverted angle-iron track. For proper operation, multiple tracks must be installed parallel, straight, and level. Improperly aligned tracks can cause the wheels to bind, derail, or operate unevenly. For best results, we recommend maintaining a track alignment tolerance of no more than 1/64" over 20 feet.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Capacity:1,500 lbs. |
Wheel Type:Ductile Steel V-Groove |
|
|
Tread Width:2" |
|

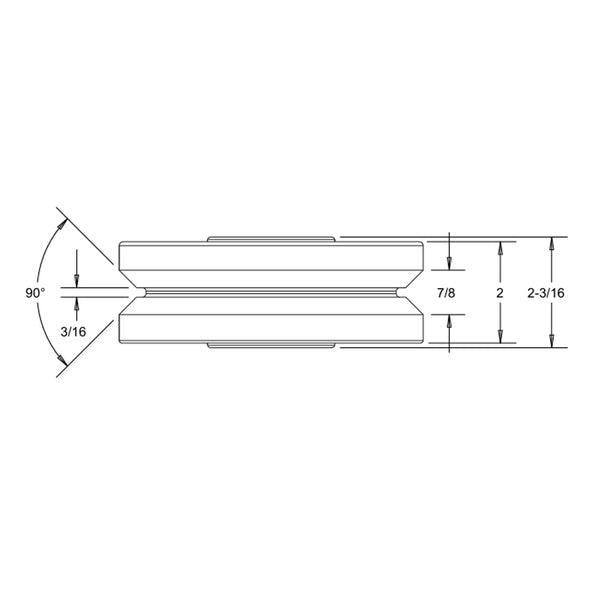

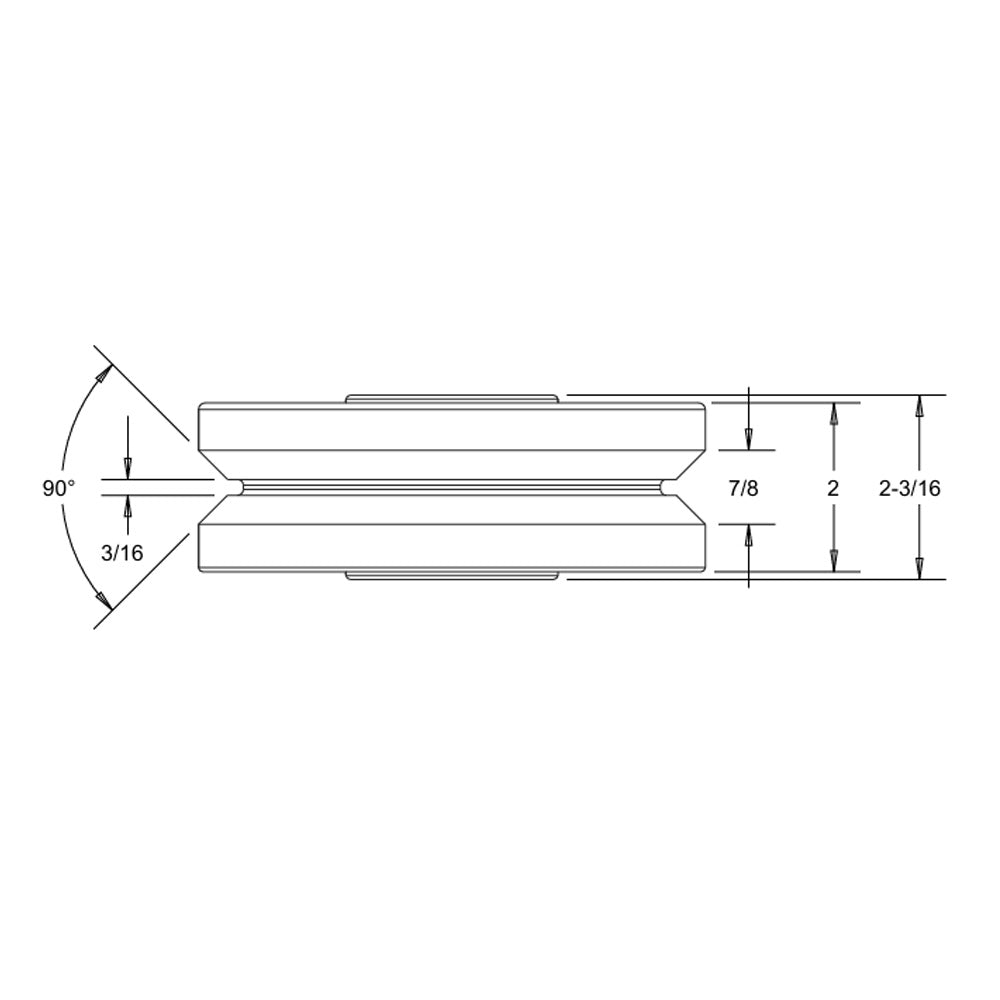

Hub Length (without Bearings):
2-3/16" |
|
Hub Length (with Bearings): 2-7/16" (2-5/16" if short bearings)
|
|
Groove Width: 7/8"
|
|
Groove Depth: 7/16"
|
Bearing Type:None |

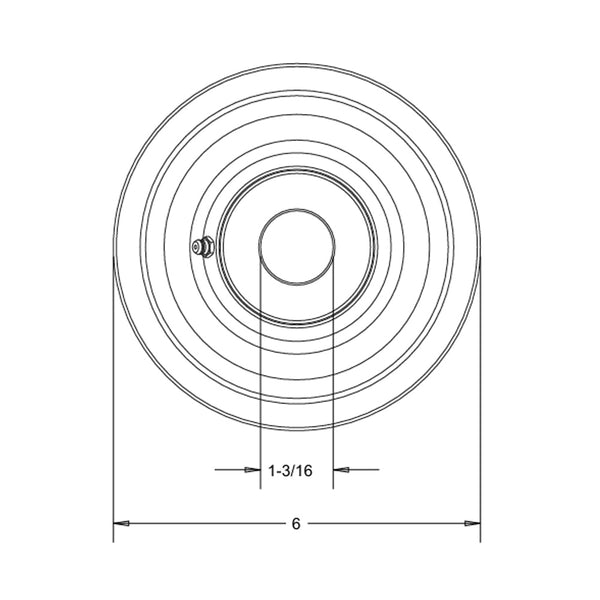

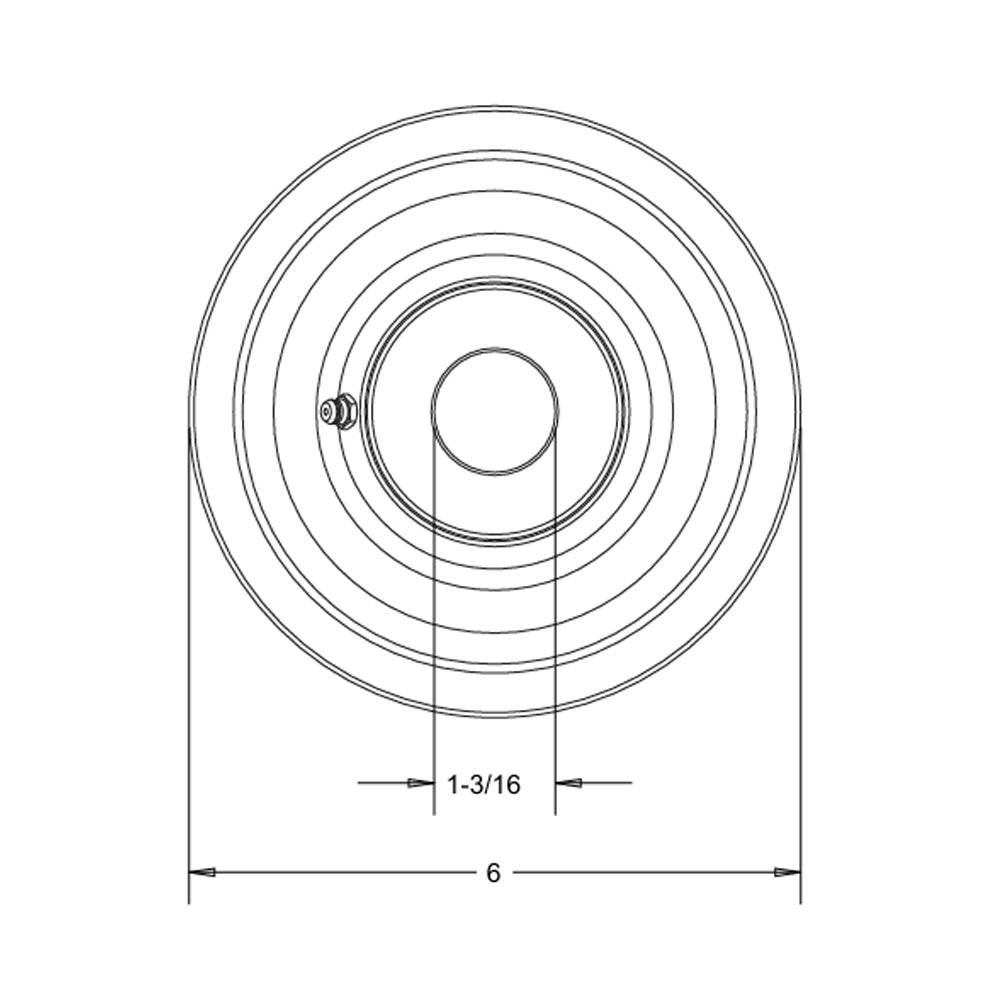

Plain Bore ID:1-3/16" |
Accepted Axle/Bearing ID:See Bearing Options |
Wheel Durometer:Rockwell 74B |
Wheel Tread Shape:V-Groove |
Temp Range: -45˚F to 800˚F |
Wheel Color:Red |
Weight: 12 lbs |
This solid steel V-groove wheel is engineered for exceptionally low rolling resistance, excellent wear resistance, and high static and dynamic load capacity. Despite its compact size, it offers an impressive load rating, making it an excellent choice for demanding applications. The durable zinc-plated finish provides added corrosion resistance, while the versatile design makes this wheel particularly popular for automatic gate systems and other rolling equipment.
V-groove wheels are designed to guide and support equipment by rolling along inverted angle-iron track. For proper operation, multiple tracks must be installed parallel, straight, and level. Improperly aligned tracks can cause the wheels to bind, derail, or operate unevenly. For best results, we recommend maintaining a track alignment tolerance of no more than 1/64" over 20 feet.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Capacity:1,500 lbs. |
Wheel Type:Ductile Steel V-Groove |
|
|
Tread Width:2" |
|
Hub Length (without Bearings):
2-3/16" |
|
Hub Length (with Bearings): 2-7/16" (2-5/16" if short bearings)
|
|
Groove Width: 7/8"
|
|
Groove Depth: 7/16"
|
Bearing Type:None |
Plain Bore ID:1-3/16" |
Accepted Axle/Bearing ID:See Bearing Options |
Wheel Durometer:Rockwell 74B |
Wheel Tread Shape:V-Groove |
Temp Range: -45˚F to 800˚F |
Wheel Color:Red |
Weight: 12 lbs |
