Home / All / 8" x 2" Balloon Cushion Wheel Rubber Swivel Brake Caster - 700 Lbs Capacity

8" x 2" Balloon Cushion Wheel Rubber Swivel Brake Caster - 700 Lbs Capacity

$66.15

Part # 146RND820SB

Availablity: Usually ships in 24-48 hours
+

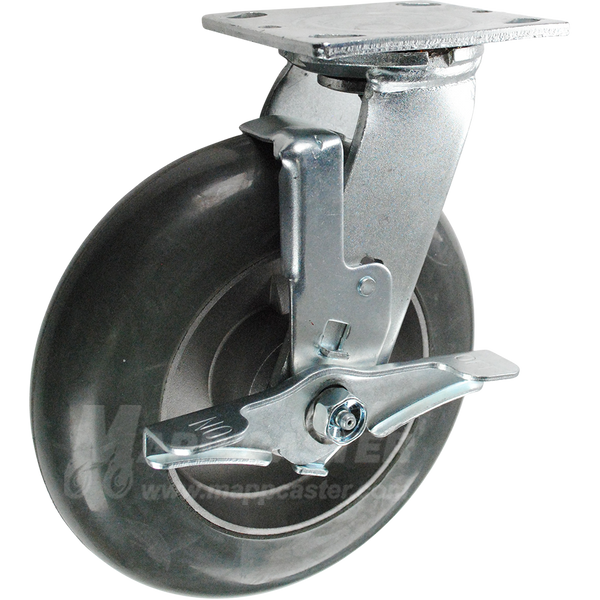

8" x 2" Balloon Cushion Wheel Rubber Swivel Brake Caster - Part #: 146RND820SB

Balloon Cushioned wheels have a rounded rubber treaded molded to an aluminum core. The rounded tread minimizes friction and enables the wheel to turn easily. This wheel offers the best shock absorbing, cushioned ride available of rubber wheels. It rolls easily over debris and small obstructions, such as electrical cords. This caster wheel also has superior floor protection, ultra-quiet rolling, and is non marking. The down side is this wheel has lower capacities than other rubber wheels. For higher capacity wheels with similar characteristic, check out our thermoplastic rubber wheels.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Specifications:

Load Capacity (lbs.): 700 Link to Matching Rigid Brake Caster:  146RND820RB
Wheel Diameter: 8" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Grey Soft Rubber Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Swivel Radius:  6"
Overall Height: 9-1/2" Swivel Construction:  Double Ball Raceway - 5/8" Kingpin
Temp Range: -20°F to 160°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 75 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Grey Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel:  QRND8M5G Weight: 7.814 lbs.

PRODUCT DETAILS

8" x 2" Balloon Cushion Wheel Rubber Swivel Brake Caster - Part #: 146RND820SB

Balloon Cushioned wheels have a rounded rubber treaded molded to an aluminum core. The rounded tread minimizes friction and enables the wheel to turn easily. This wheel offers the best shock absorbing, cushioned ride available of rubber wheels. It rolls easily over debris and small obstructions, such as electrical cords. This caster wheel also has superior floor protection, ultra-quiet rolling, and is non marking. The down side is this wheel has lower capacities than other rubber wheels. For higher capacity wheels with similar characteristic, check out our thermoplastic rubber wheels.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Specifications:

Load Capacity (lbs.): 700 Link to Matching Rigid Brake Caster:  146RND820RB
Wheel Diameter: 8" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Grey Soft Rubber Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Swivel Radius:  6"
Overall Height: 9-1/2" Swivel Construction:  Double Ball Raceway - 5/8" Kingpin
Temp Range: -20°F to 160°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 75 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Grey Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel:  QRND8M5G Weight: 7.814 lbs.
