Home / All / 8" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Brake Caster - 1,200 Lbs Capacity

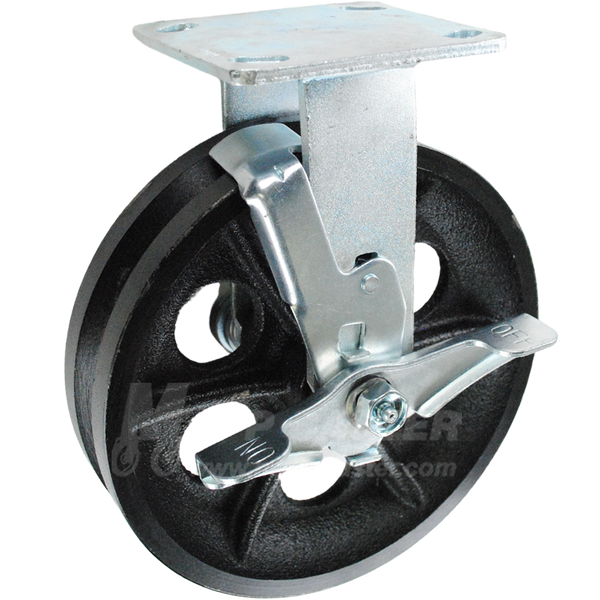

8" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Brake Caster - 1,200 Lbs Capacity

$60.46

Part # P50082VIRBTLB

Availablity: Usually ships in 24-48 hours
+

8" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Brake Caster - Part # P50082VIRBTLB

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1200

Link to Matching Swivel Brake Caster: P51082VIRBTLB
Wheel Diameter: 6" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 9-1/2" Swivel Construction:  N/A
Temp Range: -45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG820 Weight: 12.976 Lbs

PRODUCT DETAILS

8" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Brake Caster - Part # P50082VIRBTLB

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1200

Link to Matching Swivel Brake Caster: P51082VIRBTLB
Wheel Diameter: 6" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 9-1/2" Swivel Construction:  N/A
Temp Range: -45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG820 Weight: 12.976 Lbs
