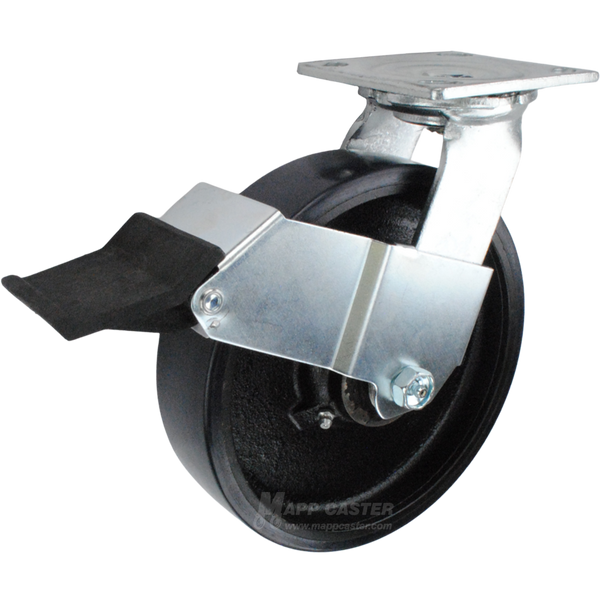

8" x 2" Polyurethane on Iron Wheel Swivel Caster with Face Contact Brake - 1,250 Lbs Capacity

$72.91

Part # 146UIRB820SFCB

Availablity: Usually ships in 5-7 Business Days

PRODUCT DETAILS

8" x 2" Polyurethane on Iron Wheel Swivel Caster with Face Contact Brake - Part # 146UIRB820SFCB

Designed for heavy duty industrial use, our dark blue polyurethane on iron casters have capacities on par with cast iron & phenolic resin. The firm Shore A 95 tread reduces deformation under load for easier rolling & better push efficiency, while the moderately crowned profile improves swiveling & maneuverability. The tread is mechanically & chemically bonded to the iron core to create a stronger bond that helps minimize de-treading. Unlike cast iron or phenolic caster wheels, the non-marking polyurethane tread is safe for hardwood, tile & other finished floors.

These casters are ideal for warehouses, gantry cranes & other demanding applications requiring high capacities without stepping up to the cost of premium polyurethane on aluminum wheels. They perform best on smoother floors, though they can tolerate rougher surfaces as well. Because of the iron core, these casters are not recommended for consistently wet environments where rust may become a concern. Prolonged exposure to extreme heat & direct sunlight can also reduce polyurethane lifespan over time.

Polyurethane wheels come in variety of colors, tread shapes & durometers to meet your application needs. While the color doesn’t affect performance, the tread shape & durometer will.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Load Capacity (lbs.): 1250	Link to Matching Rigid Brake Caster: 146UIRB820RB
Wheel Diameter: 8"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Poly on Iron	Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options	Swivel Radius: 8-1/2"
Overall Height: 9-1/2"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 95 (+/-5)	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Dark Blue	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QPCI8MO	Weight: 11.688 lbs.
