Home / All / 8" x 2" Rubber on Nylon Wheel Swivel Caster with Total Locking Brake - 600 Lbs Capacity

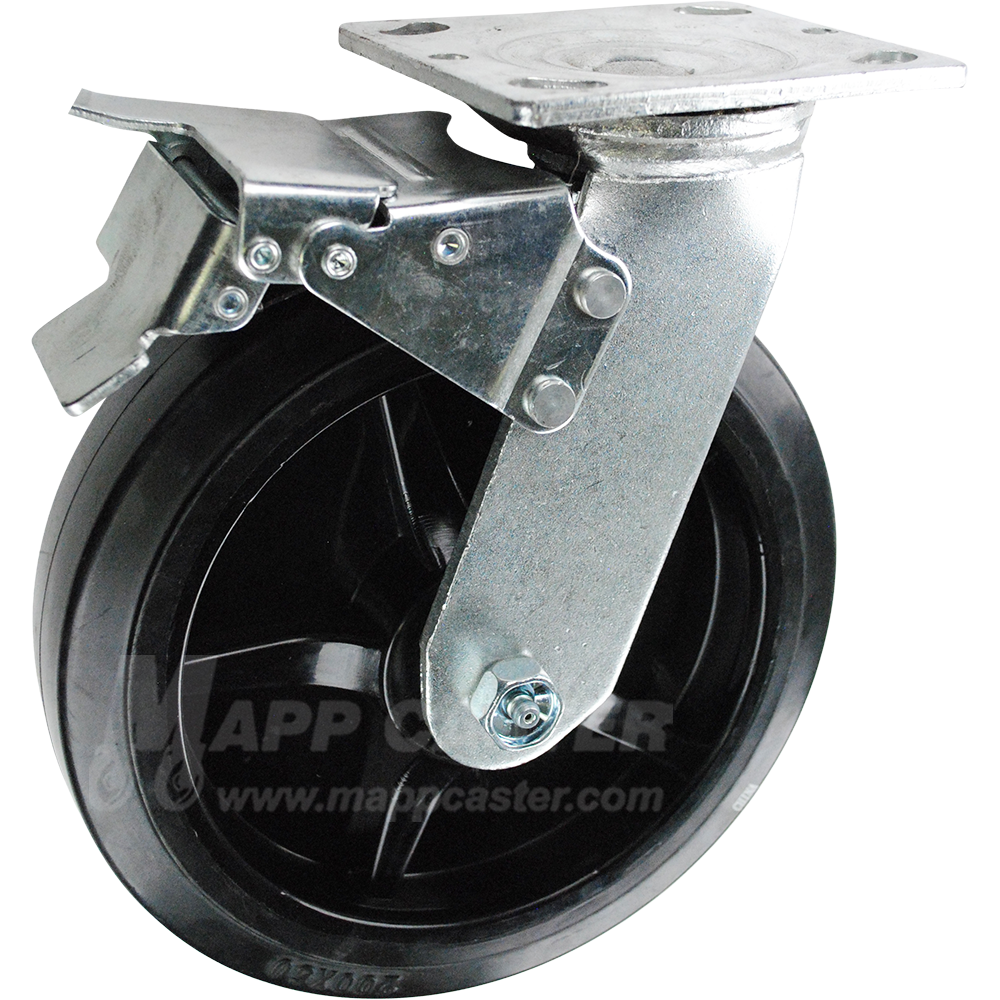

8" x 2" Rubber on Nylon Wheel Swivel Caster with Total Locking Brake - 600 Lbs Capacity

$64.00

Part # 146RNB820SBTL

Availablity: Usually ships in 24-48 hours
+

8" x 2" Rubber on Nylon Wheel Swivel Caster with Total Locking Brake - Part #: 146RNB820SBTL

Rubber on nylon wheels offer a smooth, quiet, & cushioned ride that will protect floors for an economical price. The nylon core provides equivalent load and impact capacities when compared to cast iron cores, but is rust free and can be used for applications requiring wash downs, high humidity, and outdoor environments. The down side to rubber wheels is they can leave marks on the floor similar to car tires on a road and they have lower capacities compared to other wheels. If you need a non-marking wheel or more capacity, we recommend our thermoplastic rubber wheels or polyurethane wheels.

We would not recommend rubber wheels for applications that require sitting in one spot for long periods of time under heavy loads.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

Specifications:

Load Capacity (lbs.): 600 Link to Matching Rigid Brake Caster: 146RNB820RB
Wheel Diameter: 8" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Rubber on Nylon Swivel or Rigid Caster: Swivel with Top Lock Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: 6-5/8"
Overall Height: 9-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer:  Shore A 80 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LED820RN23B Weight: 7.802 lbs.

PRODUCT DETAILS

8" x 2" Rubber on Nylon Wheel Swivel Caster with Total Locking Brake - Part #: 146RNB820SBTL

Rubber on nylon wheels offer a smooth, quiet, & cushioned ride that will protect floors for an economical price. The nylon core provides equivalent load and impact capacities when compared to cast iron cores, but is rust free and can be used for applications requiring wash downs, high humidity, and outdoor environments. The down side to rubber wheels is they can leave marks on the floor similar to car tires on a road and they have lower capacities compared to other wheels. If you need a non-marking wheel or more capacity, we recommend our thermoplastic rubber wheels or polyurethane wheels.

We would not recommend rubber wheels for applications that require sitting in one spot for long periods of time under heavy loads.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

Specifications:

Load Capacity (lbs.): 600 Link to Matching Rigid Brake Caster: 146RNB820RB
Wheel Diameter: 8" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Rubber on Nylon Swivel or Rigid Caster: Swivel with Top Lock Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: 6-5/8"
Overall Height: 9-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer:  Shore A 80 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LED820RN23B Weight: 7.802 lbs.
