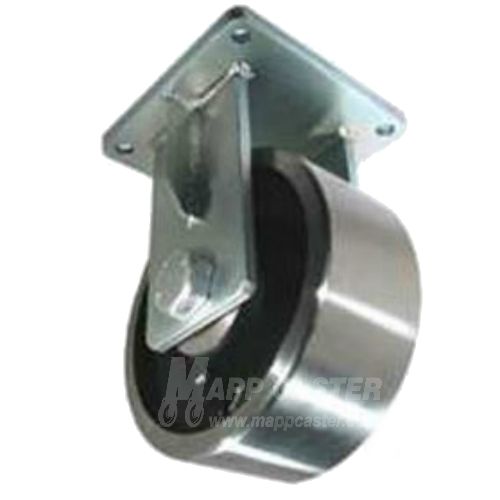

8" x 4" Forged Steel Wheel P96 Rigid Caster - 18,000 Lbs Capacity

Part # P96084TBFS

Availablity: Usually ships in 3-5 Business Days
+


8" x 4" Forged Steel Wheel P96 Rigid Caster - Part #: P96084TBFS

About the Wheel

Forged steel wheel casters are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength, and durability of all caster wheels. For a metal wheel with similar capacities and durability, but is more economical, check out our ductile steel wheel casters.

While forged steel is incredibly resilient, it is the harshest wheel type for floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

About the Rig

This extreme duty rigid rig is made of ASTM1045 steel. It has 1/2" thick steel legs that are double welded and have a support brace welded down the side. The axle is a machined 1-1/4" grade 8 bolt.

Other Info

We offer even more casters and wheels that are not online! If you don't see what you need or have questions, contact us, we are happy to help!

Specifications:

Load Capacity (lbs.): 18,000 Link to Matching Swivel Caster: P95084TBFS
Wheel Diameter: 8" Caster Rig Material Type: ASTM 1045 Steel
Tread Width: 4" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Forged Steel Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Tapered Bearings Swivel Radius: N/A
Overall Height: 11" Swivel Construction: N/A
Temp Range: -45 to 600˚F Mounting Plate: 8-1/2" x 8-1/2"
Wheel Hardness: Rockwell 80B Bolt Hole Pattern: 7" x 7"
Wheel Color: Silver Mounting Bolt Size: 5/8" or Smaller
Link to Replacement Wheel:  Contact Us Weight: 68.00 lbs.
