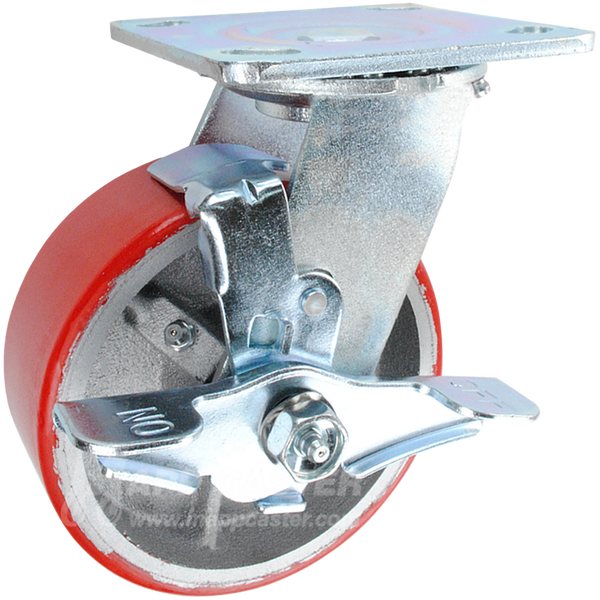

5" x 2" Red Polyurethane on Iron Wheel Swivel Brake Caster - 1,100 Lbs Capacity

$29.43

Part # 146PURB520SB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

5" x 2" Red Polyurethane on Iron Wheel Swivel Brake Caster - Part #: 146PURB520SB

Polyurethane on iron caster wheels provide better floor protection, non-marking treads, quieter rolling, and smoother rides compared to steel or phenolic wheels, while maintaining similar load capacities. These wheels are more durable and heavy-duty than polyurethane on polyolefin wheels but are heavier and slightly harder to roll than polyurethane on aluminum core wheels.

Poly on iron wheels are ideal for heavy-duty use when you want a durable polyurethane option without the cost of premium poly on aluminum casters. They are suitable for most applications, but not recommended for hot/cold temperatures or prolonged exposure to direct sunlight.

Poly on Iron wheels come in variety of colors, tread thicknesses & durometers to meet your application needs. While the color doesn’t affect performance, the tread thickness & durometer typically do. Typically, the thicker the tread is, the more capacity the wheel can handle. The durometer or how hard something is also determines the amount of cushion a wheel can give you on a caster.

Specifications:

Load Capacity (lbs.): 1,100	Link to Matching Rigid Caster with Brake : 146PURB520RB
Wheel Diameter: 5"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Poly on Iron	Swivel or Rigid Caster: Swivel with Top Lock Brake
Wheel Bearing Type: See Bearings Options	Swivel Radius: 4"
Overall Height: 6-5/8"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 95 (+/-5)	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Red & Grey	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LPU50JV84	Weight: 6.57 lbs.
