Home / All / 6" x 2" Red Polyurethane on Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity

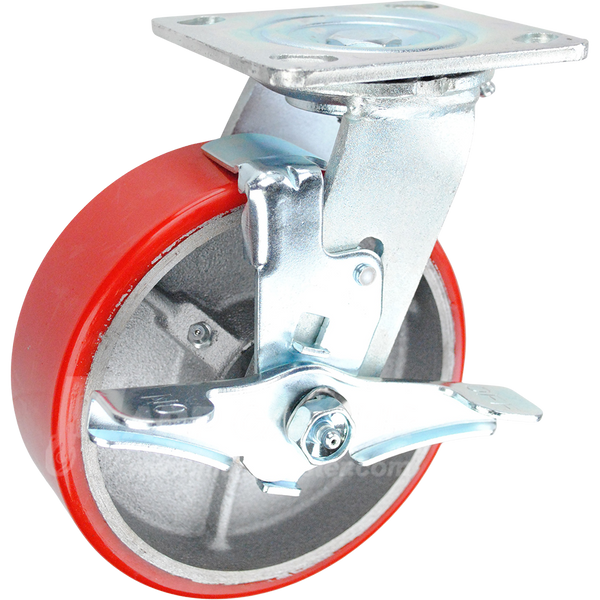

6" x 2" Red Polyurethane on Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity

$35.19

Part # 146PURB620SB

Availablity: Usually ships in 24-48 hours
+

6" x 2" Red Polyurethane on Iron Wheel Swivel Brake Caster - Part #: 146PURB620SB

Polyurethane on iron caster wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on iron wheels are going to be more durable & heavier duty than a polyurethane on polyolefin wheel, but heavier and slightly more difficult to get rolling than a polyurethane on aluminum core wheel. These poly on iron wheels are recommended when you need heavy duty polyurethane wheel but do not want to pay for the premium poly on aluminum castor wheels. These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Poly on Iron wheels come in variety of colors, tread thicknesses & durometers to meet your application needs. While the color doesn’t affect performance, the tread thickness & durometer typically do. Typically, the thicker the tread is, the more capacity the wheel can handle. The durometer or how hard something is also determines the amount of cushion a wheel can give you on a caster.

Specifications:

Load Capacity (lbs.): 1,200 Link to Matching Rigid Caster With Brake: 146PURB620RB
Wheel Diameter: 6" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Poly on Iron Swivel or Rigid Caster: Swivel with Top Lock Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: 4-9/16"
Overall Height: 7-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 95 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Red & Grey Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LPU60JV84 Weight: 8.15 lbs.

PRODUCT DETAILS

6" x 2" Red Polyurethane on Iron Wheel Swivel Brake Caster - Part #: 146PURB620SB

Polyurethane on iron caster wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on iron wheels are going to be more durable & heavier duty than a polyurethane on polyolefin wheel, but heavier and slightly more difficult to get rolling than a polyurethane on aluminum core wheel. These poly on iron wheels are recommended when you need heavy duty polyurethane wheel but do not want to pay for the premium poly on aluminum castor wheels. These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Poly on Iron wheels come in variety of colors, tread thicknesses & durometers to meet your application needs. While the color doesn’t affect performance, the tread thickness & durometer typically do. Typically, the thicker the tread is, the more capacity the wheel can handle. The durometer or how hard something is also determines the amount of cushion a wheel can give you on a caster.

Specifications:

Load Capacity (lbs.): 1,200 Link to Matching Rigid Caster With Brake: 146PURB620RB
Wheel Diameter: 6" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Poly on Iron Swivel or Rigid Caster: Swivel with Top Lock Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: 4-9/16"
Overall Height: 7-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 95 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Red & Grey Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LPU60JV84 Weight: 8.15 lbs.
