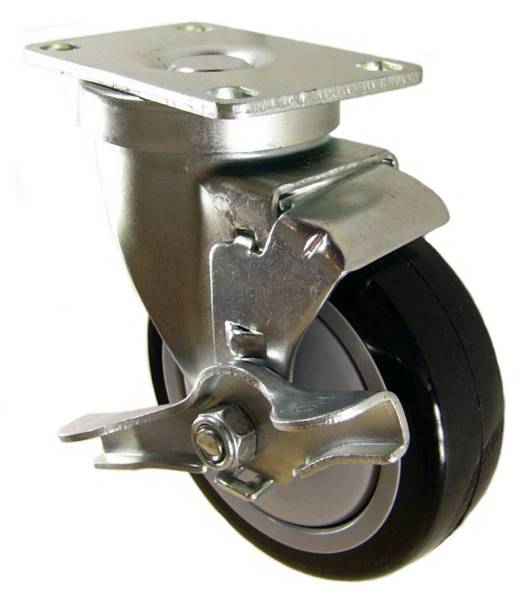

4" x 1-1/4" Polyurethane Swivel Caster with Top Lock Brake - 350 Lbs Capacity

Part # Q524001PLYTLB

Availablity: Usually ships in 24-48 hours
+


4" x 1-1/4" Polyurethane Wheel Swivel Caster with Top Lock Brake - Part# Q524001PLYTLB

Polyurethane wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel, plastic, or other hard tread wheels, while still providing comparable load capacities. These wheels are great for most applications, but are not recommended for extreme hot or cold applications, when left in direct sunlight for most of their use, or if left parked in one place for long periods of time.

Specifications:

Load Capacity (lbs.): 350 Link to Matching Rigid Caster: Q5240R01PLY
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyurethane Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: Ball Bearings Swivel Radius: 3-13/32"
Overall Height: 5" Swivel Construction: Double Ball Raceway
Temp Range: -20 to 180 F Mounting Plate:  2-3/8" x 3-5/8"
Wheel Durometer: 60 shore D Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"
Wheel Color: Black on Gray Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel: QPLY4J3 Weight: 1.74 Lbs

Questions & Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

PRODUCT DETAILS

4" x 1-1/4" Polyurethane Wheel Swivel Caster with Top Lock Brake - Part# Q524001PLYTLB

Polyurethane wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel, plastic, or other hard tread wheels, while still providing comparable load capacities. These wheels are great for most applications, but are not recommended for extreme hot or cold applications, when left in direct sunlight for most of their use, or if left parked in one place for long periods of time.

Specifications:

Load Capacity (lbs.): 350 Link to Matching Rigid Caster: Q5240R01PLY
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyurethane Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: Ball Bearings Swivel Radius: 3-13/32"
Overall Height: 5" Swivel Construction: Double Ball Raceway
Temp Range: -20 to 180 F Mounting Plate:  2-3/8" x 3-5/8"
Wheel Durometer: 60 shore D Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"
Wheel Color: Black on Gray Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel: QPLY4J3 Weight: 1.74 Lbs
