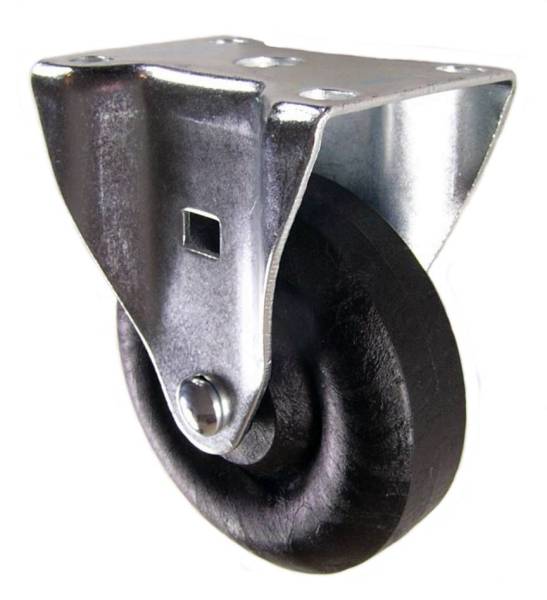

4" x 1-3/8" High Temp Nylon Donut Wheel Rigid - 350 Lbs Capacity

$15.46

Part # Q5240R01HEAT-RD

PRODUCT DETAILS

4" x 1-3/8" HIGH TEMP NYLON WHEEL RIGID CASTER - Part # Q5240R01HEAT-RD

High Temperature HeatEater caster wheels have a temperature range up to 475˚F continuous and 550˚F intermittent. Made of a glass filled nylon mixture, these caster wheels can be used in both wet and dry high temperature applications. The hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. All these features make this one of our favorite high temp wheels!

If higher temperature wheels are needed and floor protection is not a concern, check out our steel wheel casters with temperatures up to 600˚F.

SPECIFICATIONS:

Load Capacity (lbs.): 350	Link to Matching Swivel Caster: Q524001HEAT-RD
Wheel Diameter: 4"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-3/8"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Glass Filled Nylon	Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Spanner Bushing	Swivel Radius: N/A
Overall Height: 5"	Swivel Construction: N/A
Temp Range: -40 to 475˚F Continuous & 550˚F Intermittent	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Durometer: 85 Shore D (+/-5)	Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"
Wheel Color: Black	Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel: R451171C/B	Weight: 1.49 Lbs
