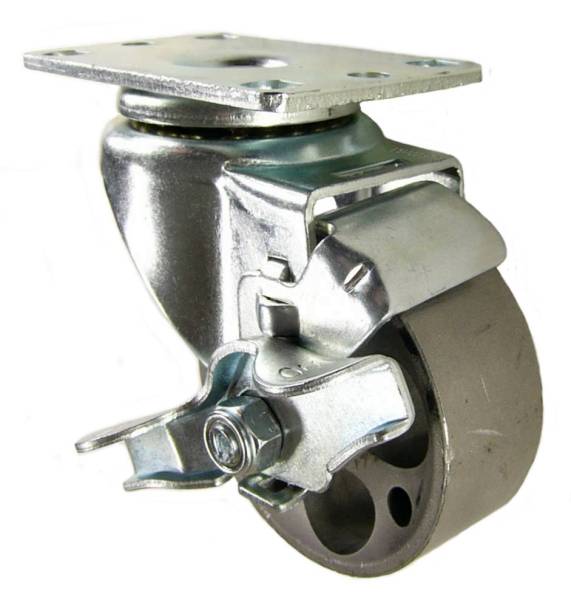

3" x 1-1/4" steel Swivel Caster with Brake - 350 Lbs Capacity

$15.33

Part # Q523001STLTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Steel Wheel Swivel Caster with Brake- Part# Q523001STLTLB

Metal wheels are the most durable and longest lasting type of caster wheel available in this size. However, while metal wheels are very strong and durable, they are rough on floors and could lead to floor damage. For floor protective wheels, be sure to check out our polyurethane, rubber, and polyolefin wheels.

Specifications:

Load Capacity (lbs.): 350	Link to Matching Rigid Caster: Q5030R01STL
Wheel Diameter: 3"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-1/4"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Sintered Iron (Metal)	Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: Plain Bore	Swivel Radius: 2-15/16"
Overall Height: 4-1/8"	Swivel Construction: Double Ball Raceway
Temp Range: -20 to 600F	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Durometer: Brinell 145	Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"
Wheel Color: Silver	Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel: QSTL3H3	Weight: 2.25 Lbs

Part Number for Optional 03 Plate Caster: Q503003STLTLB

Part Number for Optional 02 Plate Caster: Q503002STLTLB
