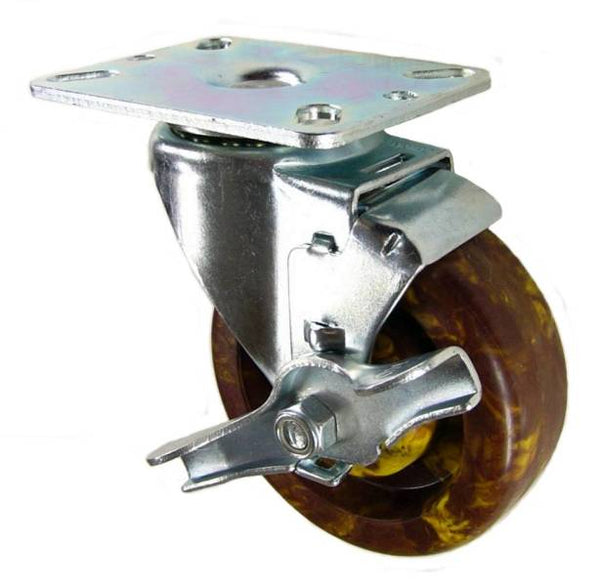

4" x 1-1/2" High Temp Epoxy wheel Swivel Caster with brake - 350 Lbs Capacity

Part # Q504003HEATLB-OV

+


4" x 1-1/2" HIGH TEMP EPOXY WHEEL SWIVEL CASTER WITH BRAKE - Part # Q504003HEATLB-OV

High temp epoxy wheels have a temperature range up to 480˚F continuous and work great in both dry and wet high temp applications. Made of glass fiber mixed in epoxy resin, the hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. We recommend these wheels for high temp applications that require wash downs or steam cleaning. For similar wheels with a higher temperature rating, check out or HeatEater wheels.

Additional Specs: Temp Range -40 to 480˚F continuous, Hardness – Shore D 85 (+/-5)

SPECIFICATIONS:

Load Capacity (lbs.): 350 Link to Matching Rigid Caster: Q5040R03HEAT-OV
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-1/2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Glass Filled Nylon Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Spanner Bushing Swivel Radius: 3-13/32"
Overall Height: 5" Swivel Construction: Double Ball Raceway
Temp Range: -40 to 480˚continuous Mounting Plate:  3-1/8" x 4-1/8"
Wheel Durometer: 85 Shore D (+/-5) Bolt Hole Pattern:  1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"
Wheel Color: Brown Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LOV40HQ83 Weight: 2.42 Lbs

PRODUCT DETAILS

4" x 1-1/2" HIGH TEMP EPOXY WHEEL SWIVEL CASTER WITH BRAKE - Part # Q504003HEATLB-OV

High temp epoxy wheels have a temperature range up to 480˚F continuous and work great in both dry and wet high temp applications. Made of glass fiber mixed in epoxy resin, the hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. We recommend these wheels for high temp applications that require wash downs or steam cleaning. For similar wheels with a higher temperature rating, check out or HeatEater wheels.

Additional Specs: Temp Range -40 to 480˚F continuous, Hardness – Shore D 85 (+/-5)

SPECIFICATIONS:

Load Capacity (lbs.): 350 Link to Matching Rigid Caster: Q5040R03HEAT-OV
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-1/2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Glass Filled Nylon Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Spanner Bushing Swivel Radius: 3-13/32"
Overall Height: 5" Swivel Construction: Double Ball Raceway
Temp Range: -40 to 480˚continuous Mounting Plate:  3-1/8" x 4-1/8"
Wheel Durometer: 85 Shore D (+/-5) Bolt Hole Pattern:  1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"
Wheel Color: Brown Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LOV40HQ83 Weight: 2.42 Lbs
