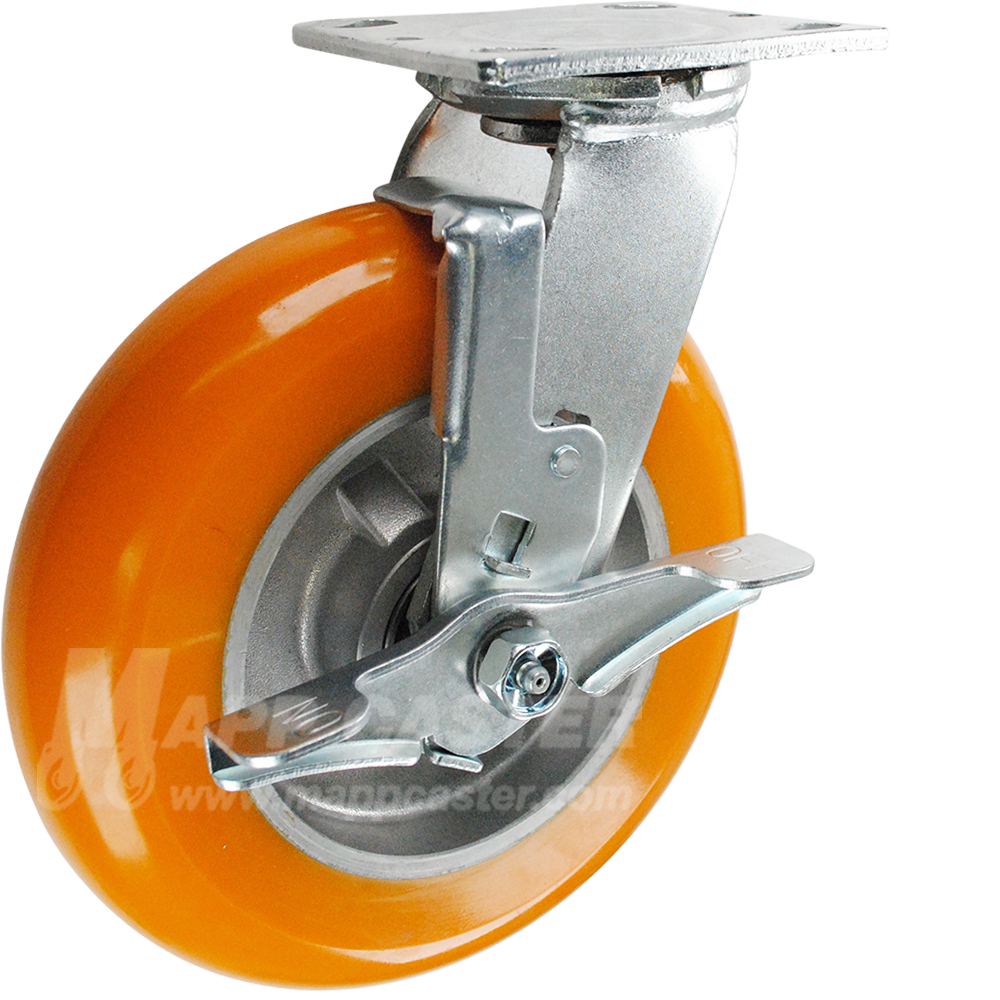

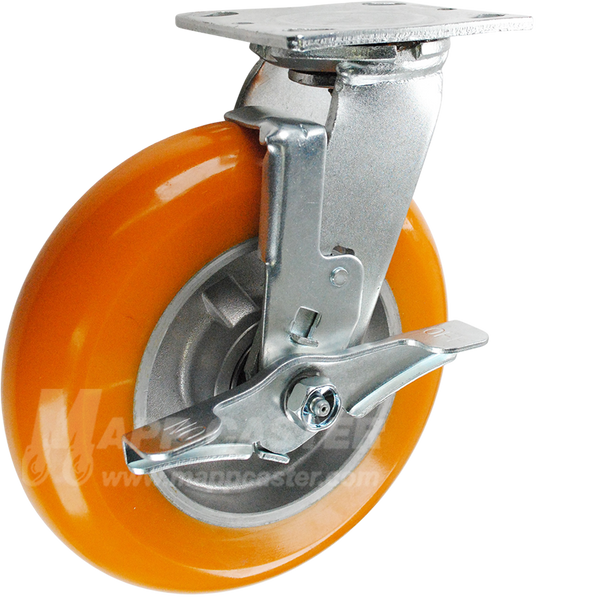

8" x 2" Orange Poly on Aluminum Wheel Swivel Brake Caster - 1000 Lbs Capacity

$75.21

Part # 146UXBB820SB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

8" x 2" Orange Poly on Aluminum Wheel Swivel Brake Caster - Part # 146UXBB820SB

Polyurethane wheels provide superior floor protection, non-marking treads, quieter rolling, and smoother rides compared to steel or phenolic wheels, with similar load capacities. Polyurethane on aluminum casters is considered premium, offering added benefits such as being lighter, easier to roll, rust-resistant, and having a chemically bonded tread to prevent de-bonding. These wheels are suitable for most applications but not recommended for hot or cold applications.

Poly on Aluminum wheels come in variety of colors, tread shapes & durometer to meet your application needs. While the color doesn’t affect performance, the shape & durometer will. Crowned wheels minimize friction enabling the wheels to turn easier & require less effort to begin and maintain rolling compared to flat treads. The durometer affects the amount of cushion provided.

Specifications:

Load Capacity (lbs.): 1000	Link to Matching Rigid Brake Caster: 146UXBB820RB
Wheel Diameter: 8"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyurethane on Aluminum	Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearing	Swivel Radius: 6"
Overall Height: 9-1/2"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -20 to 180F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore D 55 (+/-5)	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Orange	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LUX80JO64	Weight: 8.01 lbs.
