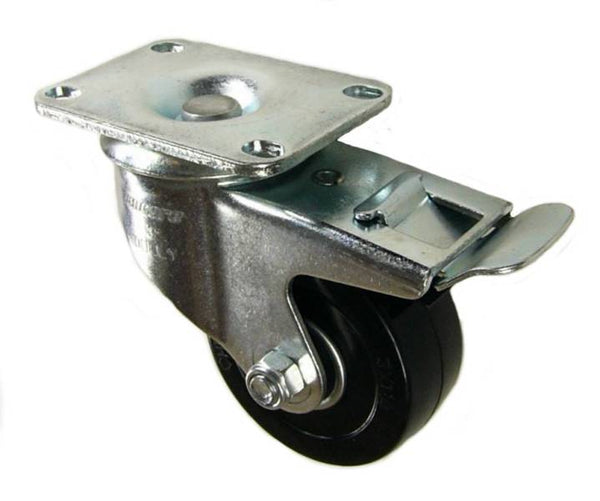

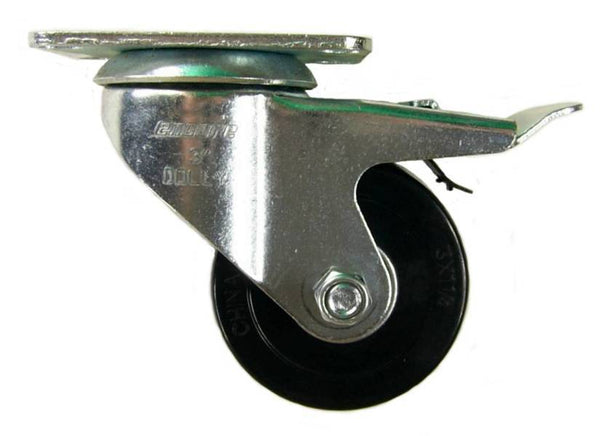

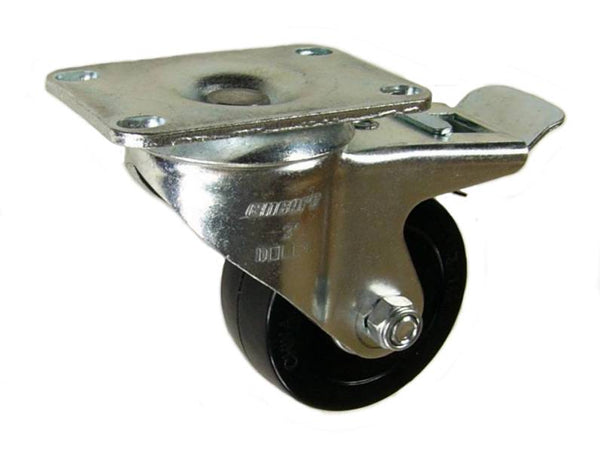

3" x 1-1/4" Hard Rubber (Ball Bearing) Wheel Swivel Caster with Total Lock Brake - 300 Lbs Capacity

Part # Q523001HRBSWB

Availablity: Usually ships in 24-48 hours
+


3" x 1-1/4" Hard Rubber Wheel with Ball Bearings Swivel Caster with Total Lock Brake - Part # Q523001HRBSWB

Hard rubber wheels are economically priced and recommended for applications that require higher weight capacities than soft rubber wheels can handle. These wheels work best for applications that don’t require non-marking treads or sitting in place for long periods of time. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under load.

Specifications:

Load Capacity (lbs.): 300 Link to Matching Rigid Caster: Q5030R01HRB
Wheel Diameter: 3" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Hard Rubber Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearings Swivel Radius: 3"
Overall Height: 4-1/8" Swivel Construction: Double Ball Raceway
Temp Range: -40 to 160F Mounting Plate: 2-3/8" x 3-5/8"
Wheel Durometer: 55 Shore D (+/-5) Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"
Wheel Color: Black Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel:  QHRB3H3 Weight: 1.81 Lbs

PRODUCT DETAILS

3" x 1-1/4" Hard Rubber Wheel with Ball Bearings Swivel Caster with Total Lock Brake - Part # Q523001HRBSWB

Hard rubber wheels are economically priced and recommended for applications that require higher weight capacities than soft rubber wheels can handle. These wheels work best for applications that don’t require non-marking treads or sitting in place for long periods of time. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under load.

Specifications:

Load Capacity (lbs.): 300 Link to Matching Rigid Caster: Q5030R01HRB
Wheel Diameter: 3" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Hard Rubber Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearings Swivel Radius: 3"
Overall Height: 4-1/8" Swivel Construction: Double Ball Raceway
Temp Range: -40 to 160F Mounting Plate: 2-3/8" x 3-5/8"
Wheel Durometer: 55 Shore D (+/-5) Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"
Wheel Color: Black Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel:  QHRB3H3 Weight: 1.81 Lbs
