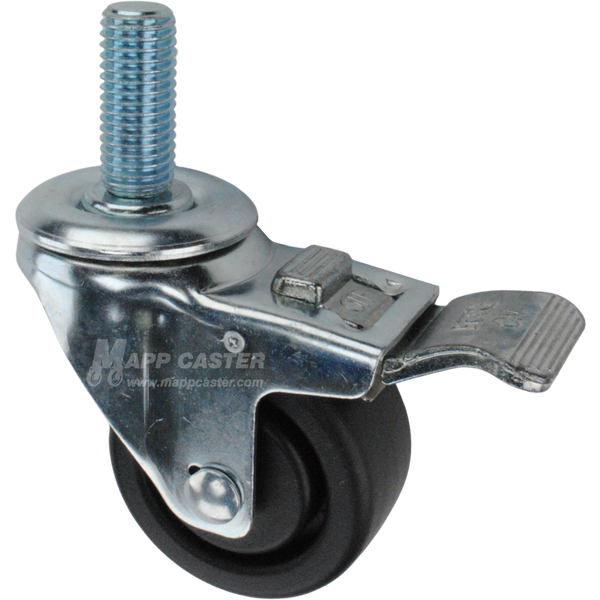

3" x 1-1/4" Heavy Duty Plastic Wheel Swivel Caster w/ Total Lock Brake, 3/4"-10 x 1-3/4" Threaded Stem - 300 lbs Capacity

$24.56

Part # 8GT30KP-HDP-3/4

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Heavy Duty Plastic Wheel Swivel Caster w/ Total Lock Brake, 3/4"-10 x 1-3/4" Threaded Stem - Part # 8GT30KP-HDP-3/4

Plastic caster wheels are solid injected molded polyolefin which yields a high shock load, impact resistant, and abrasion resistant wheel. These wheels are lightweight yet hold high weight capacities and are also non-marking. They also are washable, impervious to water, and highly resistant to solvents, oils, grease, most chemicals, and cleaning solutions. These wheels do not flat spot over time like softer tread wheels. It is because of these many features and economical price point that plastic wheel casters are very popular.

We recommend these wheels for many applications, however, if you need a more smooth, quiet, or cushioned ride, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 3/4"
Wheel Diameter:3"	Stem Thread Pitch:10
Tread Width: 1-1/4"	Stem Length:1-3/4"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:None	Caster Rig Material Type:Q235 Steel
Wheel Type:Polyolefin	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore D 70 (+/-5)	Swivel Radius: 4-3/8"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -20˚F to 180˚F	Weight: 1.63 Lbs
Link to Replacement Wheel: QHDP3H3	Link to Matching Swivel Caster: 8GS30KP-HDP-3/4

Capacity: 300 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:3/4"

Stem Thread Pitch: 10

Stem Length: 1-3/4"

Tread Shape:Slightly Crowned

Bearing Type: None

Wheel Type: Polyolefin

Wheel Durometer:Shore D 70 (+/-5)

Overall Height:4"

Swivel Radius:4-3/8"

Swivel Construction: Double Ball Raceway - Kingpin

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-20˚F to 180˚F

Weight:1.63 Lbs

Link to Replacement Wheel:QHDP3H3

Link to Matching Swivel Caster:8GS30KP-HDP-3/4
