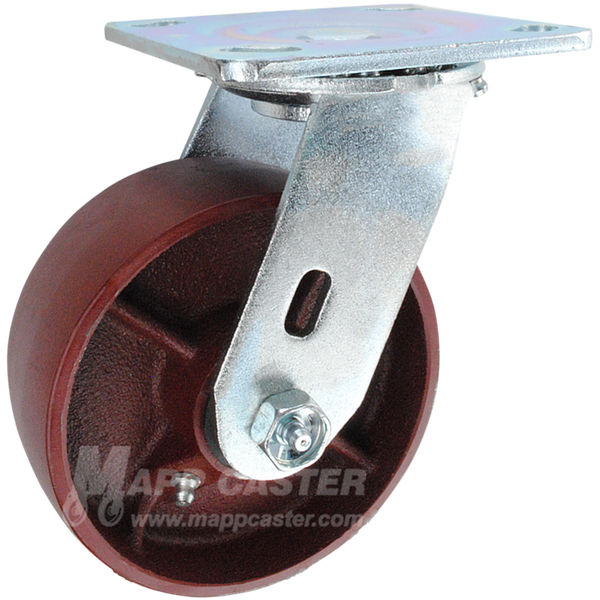

5" x 2" Ductile Steel Wheel Swivel Caster - 1250 Lbs Capacity

$39.21

Part # 146DUCT520S

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

5" x 2" Ductile Steel Wheel Swivel Caster - Part # 146DUCT520S

Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. For maximum capacity & durability, check out our premium forged steel wheel casters.

While ductile steel is very resilient, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1,250	Link to Matching Rigid Caster: 146DUCT520R
Wheel Diameter: 5"	Caster Rig Material Type: AISI 1045 Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Ductile Steel	Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options	Swivel Radius: 4"
Overall Height: 6-1/2"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45°F to 800°F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Rockwell 75B	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Red	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LDS520	Weight: 6.99 Lbs
