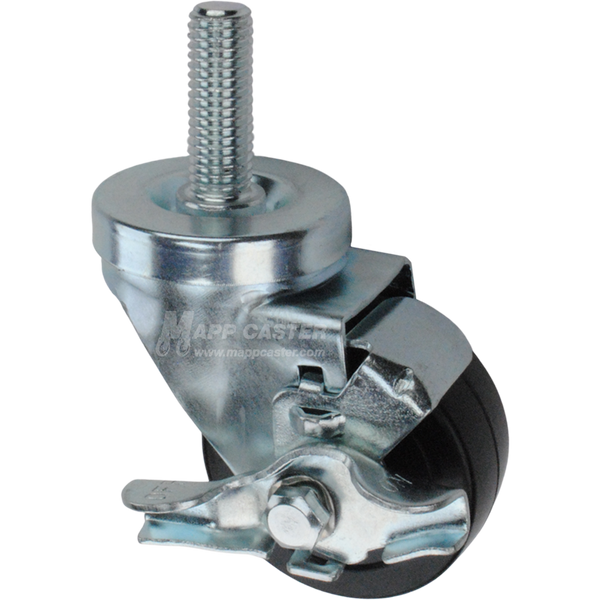

3" x 1-1/4" Soft Rubber Ball Bearing Wheel Swivel Brake Caster, 5/8"-11 x 1-3/4" Threaded Stem - 300 lbs Capacity

$21.72

Part # Q523058SRBTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Soft Rubber Ball Bearing Wheel Swivel Brake Caster, 5/8"-11 x 1-3/4" Threaded Stem - Part # Q523058SRBTLB

Soft rubber wheels are economically priced and are recommended for applications that don’t require high capacities or non-marking treads. The rubber treads provide good floor protection, semi-cushioned ride, and quiet rolling. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

*We would not recommend soft rubber wheels for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

This caster features an all-steel top lock brake that performs well in a wide range of applications, including those involving heat. The side-mounted brake pedal provides a more compact design than face contact & total lock brakes. The compact design minimizes the swivel radius, allowing the caster to spin freely 360 degrees with minimal obstruction. Casters with front-mounted brake pedals require more clearance to achieve full rotation.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 5/8"
Wheel Diameter:3"	Stem Thread Pitch:11
Tread Width: 1-1/4"	Stem Length:1-3/4"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:Ball Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Soft Rubber	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 80 (+/-5)	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -40˚F to 160˚F	Weight: 1.76 Lbs
Link to Replacement Wheel: QSRB3H3	Link to Matching Swivel Caster: Q523058SRB

Capacity: 300 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:5/8"

Stem Thread Pitch: 11

Stem Length: 1-3/4"

Tread Shape:Slightly Crowned

Bearing Type: Ball Bearing

Wheel Type: Soft Rubber

Wheel Durometer:Shore A 80 (+/-5)

Overall Height:4"

Swivel Radius:2-15/16"

Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-40˚F to 160˚F

Weight:1.76 Lbs

Link to Replacement Wheel:QSRB3H3

Link to Matching Swivel Caster:Q523058SRB
