3-1/2" x 1-1/4" Swivel Caster Rig with 7/16"-14 x 1-1/2" Threaded Stem - 350 Lbs Capacity

$9.77

Part # 8GS35KP400-7/16

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

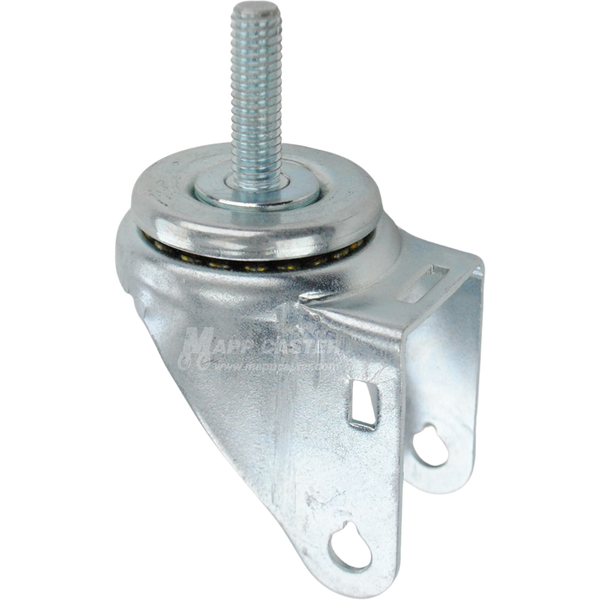

3-1/2" x 1-1/4" Swivel Caster Rig with 7/16"-14 x 1-1/2" Threaded Stem - Part # 8GS35KP400-7/16

This rig is designed for 3-1/2" diameter wheels that have a 1-1/4" wide tread and can accommodate hub lengths up to 1-5/8". With a 3-1/2" diameter wheel, the rig produces an overall height of 4-1/2".

Specifications:

Load Capacity (lbs.): 350	Stem Size: 7/16"
Designed for Wheel Diameter of: 3-1/2"	Stem Length: 1-1/2"
Designed for Tread Width of: 1-1/4"	Stem Thread: 14
Wheel Hub Length: Up to 1-5/8"	Swivel Construction: Double Ball Raceway - Kingpin
Overall Height (with wheel): 4-1/2"	Swivel Radius: 3-3/16"
Axle Size: 3/8"	Caster Rig Material Type: Q235 Steel
Leg Thickness: .125"	Caster Rig Color/Finish: Bright Zinc Plated
Matching Brake Kit: Q5235TLB	Weight (lbs): 0.84

Popular Wheels for this rig: Capacity is the lower of the rig or wheel

LSS35GS82	3-1/2" Steel wheel
QHR35G3	3-1/2" Hard Rubber wheel
QMIR35G3	3-1/2" Thermoplastic Rubber wheel
QPLY35J3	3-1/2" Polyurethane wheel
