5" x 2" Rubber on Nylon Wheel Rigid Caster - 450 Lbs Capacity

Part # 146RNB520R

Availablity: Usually ships in 24-48 hours
+


5" x 2" Rubber on Nylon Wheel Rigid Caster - Part #: 146RNB520R

Rubber on nylon wheels offer a smooth, quiet, & cushioned ride that at an economical price. The nylon core provides equivalent load & impact capacities when compared to cast iron cores, but is rust free & can be used for applications requiring wash downs, high humidity & outdoor environments.

The down side to rubber wheels is they can leave marks on the floor similar to car tires on a road & they have lower capacities compared to other wheels. If you need a non-marking wheel or more capacity, we recommend our thermoplastic rubber wheels or polyurethane wheels.

We would not recommend rubber wheels for applications that require sitting in one spot for long periods of time under heavy loads.


Specifications:

Load Capacity (lbs.): 450 Link to Matching Swivel Caster: 146RNB520S

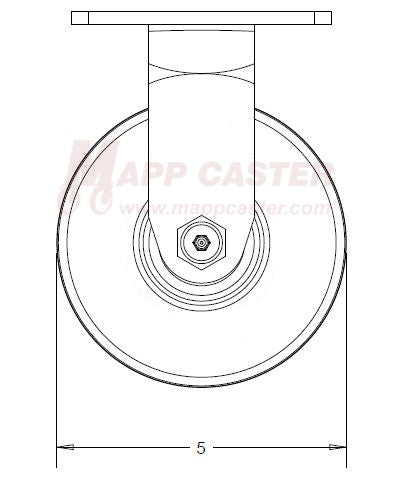

Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Rubber on Nylon Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A

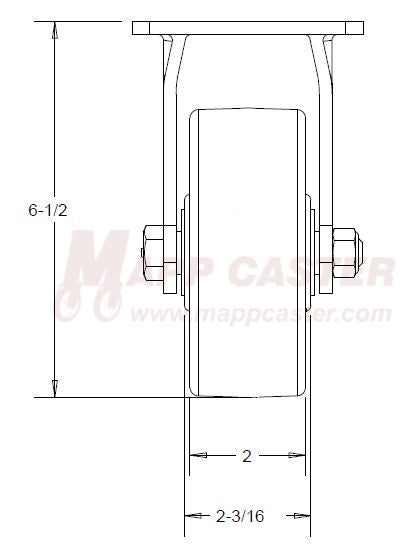

Overall Height: 6-1/2" Swivel Construction: N/A

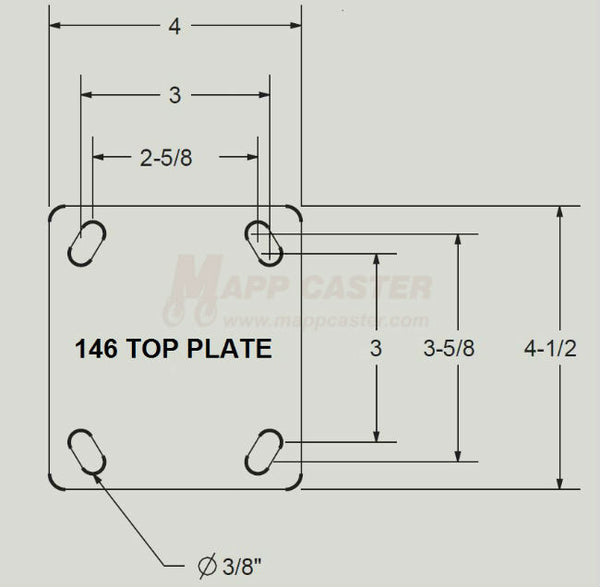

Temp Range:  -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 80 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LED520RN23B  Weight: 3.34 lbs.

PRODUCT DETAILS

5" x 2" Rubber on Nylon Wheel Rigid Caster - Part #: 146RNB520R

Rubber on nylon wheels offer a smooth, quiet, & cushioned ride that at an economical price. The nylon core provides equivalent load & impact capacities when compared to cast iron cores, but is rust free & can be used for applications requiring wash downs, high humidity & outdoor environments.

The down side to rubber wheels is they can leave marks on the floor similar to car tires on a road & they have lower capacities compared to other wheels. If you need a non-marking wheel or more capacity, we recommend our thermoplastic rubber wheels or polyurethane wheels.

We would not recommend rubber wheels for applications that require sitting in one spot for long periods of time under heavy loads.


Specifications:

Load Capacity (lbs.): 450 Link to Matching Swivel Caster: 146RNB520S
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Rubber on Nylon Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction: N/A
Temp Range:  -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 80 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LED520RN23B  Weight: 3.34 lbs.
