5" x 2" Rubber on Nylon Wheel wheel Rigid Brake Caster - 450 Lbs Capacity

Part # 146RNB520RB

Availablity: Usually ships in 24-48 hours
+


5" x 2" Rubber on Nylon Wheel Rigid Brake Caster - Part #: 146RNB520RB

Rubber on nylon wheels offer a smooth, quiet, & cushioned ride that will protect floors for an economical price. The nylon core provides equivalent load and impact capacities when compared to cast iron cores, but is rust free and can be used for applications requiring wash downs, high humidity, and outdoor environments. The down side to rubber wheels is they can leave marks on the floor similar to car tires on a road and they have lower capacities compared to other wheels. If you need a non-marking wheel or more capacity, we recommend our thermoplastic rubber wheels or polyurethane wheels.

We would not recommend rubber wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Specifications:

Load Capacity (lbs.): 450 Link to Matching Swivel Brake  Caster: 146RNB520SB
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Rubber on Nylon Swivel or Rigid Caster: Rigid with Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction: N/A

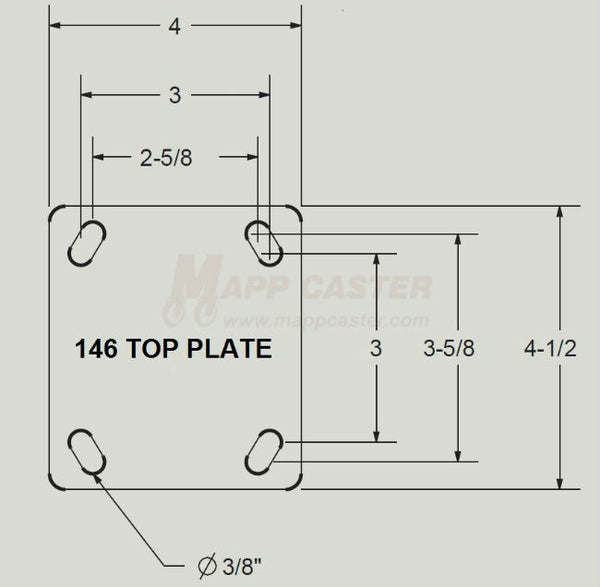

Temp Range:  -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 80 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LED520RN23B Weight: 6.25 lbs.

Questions & Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

PRODUCT DETAILS

5" x 2" Rubber on Nylon Wheel Rigid Brake Caster - Part #: 146RNB520RB

Rubber on nylon wheels offer a smooth, quiet, & cushioned ride that will protect floors for an economical price. The nylon core provides equivalent load and impact capacities when compared to cast iron cores, but is rust free and can be used for applications requiring wash downs, high humidity, and outdoor environments. The down side to rubber wheels is they can leave marks on the floor similar to car tires on a road and they have lower capacities compared to other wheels. If you need a non-marking wheel or more capacity, we recommend our thermoplastic rubber wheels or polyurethane wheels.

We would not recommend rubber wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Specifications:

Load Capacity (lbs.): 450 Link to Matching Swivel Brake  Caster: 146RNB520SB
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Rubber on Nylon Swivel or Rigid Caster: Rigid with Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction: N/A
Temp Range:  -40°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 80 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LED520RN23B Weight: 6.25 lbs.
