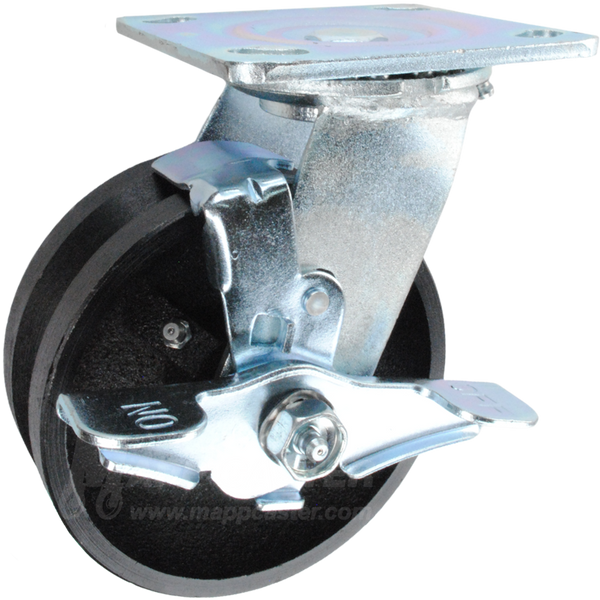

5" x 2" Cast Iron V-Groove Wheel Swivel Brake Caster - 900 Lbs Capacity

Part # 146VIRB520SB

Availablity: Usually ships in 24-48 hours
+


5" x 2" Cast Iron V-Groove Wheel Swivel Brake Caster - Part # 146VIRB520SB

V groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

Specifications:

Load Capacity (lbs.): 900

Link to Matching Rigid Brake Caster: 146VIRB520RB

Wheel Diameter: 5" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Options Swivel Radius: 4"
Overall Height: 6-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG520 Weight: 6.53 Lbs

PRODUCT DETAILS

5" x 2" Cast Iron V-Groove Wheel Swivel Brake Caster - Part # 146VIRB520SB

V groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

Specifications:

Load Capacity (lbs.): 900

Link to Matching Rigid Brake Caster: 146VIRB520RB

Wheel Diameter: 5" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Options Swivel Radius: 4"
Overall Height: 6-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG520 Weight: 6.53 Lbs
