6" x 2" Forged Steel Wheel Kingpinless Swivel Brake Caster - 2,000 Lbs Capacity

$155.78

Part # P5106201251TLB

Availablity: Usually ships in 2-3 Business Days

PRODUCT DETAILS

6" x 2" Forged Steel Wheel Swivel Brake Caster - Part # P5106201251TLB

Forged steel wheel casters are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane on iron wheels. For a metal wheel with similar capacities and durability, but is more economical, check out our ductile steel wheel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Load Capacity (lbs.): 2,000	Link to Matching Rigid Brake Caster: P5006201252TLB
Wheel Diameter: 6"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Forged Steel	Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options	Swivel Radius: 4-9/16"
Overall Height: 7-1/2"	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45°F to 1300°F	Mounting Plate: 4" x 4-1/2"

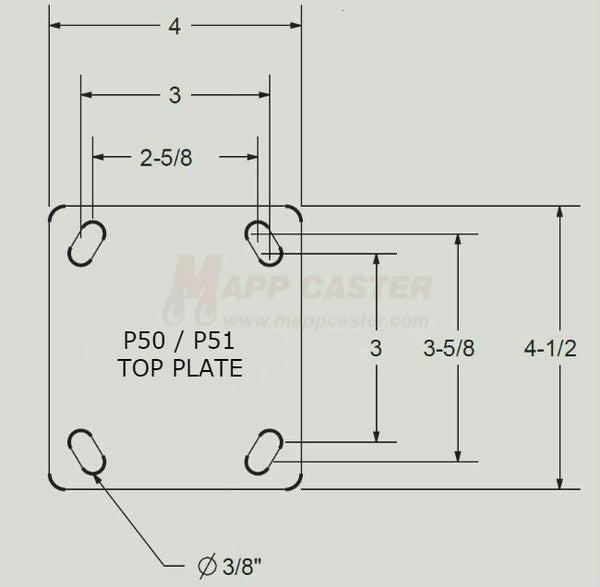

Wheel Durometer: Rockwell 75B	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Silver	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LFS60JS84	Weight: 14.574 Lbs
