Stainless Steel Pedal Type Floor Lock for 6" x 2" Wheel Casters

$188.15

Part # LFL60S17

PRODUCT DETAILS

Stainless Steel Pedal Type Floor Lock for 6" x 2" Wheel Casters - Part # LFL60S17

Floor locks enable foot-activated braking for carts, u-boats, platform trucks, & other equipment from a single location when used with casters of similar heights. Floor locks eliminate the need for multiple brake casters, immobilizing equipment without needing to lock each caster. When the braking pad is retracted, the floor lock moves freely with the equipment. When the braking pad is extended, the equipment is immobilized. Floor locks are not designed to be a jack & do not lift or directly support weight. MUST be used on level surfaces to work properly.

Stainless steel offers exceptional durability, corrosion resistance, & strength, making it ideal for a wide range of applications. Its resistance to rust and stains ensures longevity, even in harsh environments.

Typically used with 6" diameter by 2" wide casters that have a 7-1/2" mounting height.

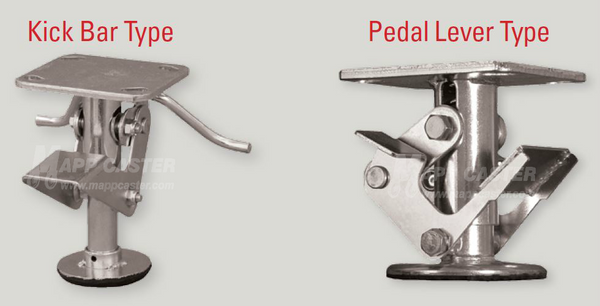

Pedal does not go past the plate to avoid tripping when retracted, but could be harder to access.

If you need assistance selecting the best floor lock for your application or don’t see what you are looking for, contact us, we are happy to help.

Specifications:

Extended Height: 7-3/4"	Retracted Height: 6-1/2"
Total Length: 5-3/16"	Total Width: 5-7/8"

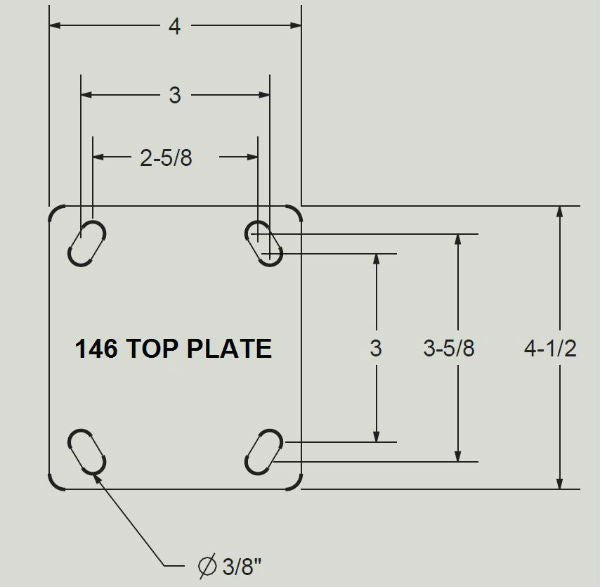

Mounting Plate: 4" x 4-1/2"	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Mounting Bolt Size: 3/8" or Smaller	Pedal Access: Short Side (4" Side)
Engaging Pedal Type: Flat Pedal	Disengaging Pedal Type: Flat Pedal
Link to Compatible Stainless Casters: 6" x 2" Medium Duty Stainless Casters	Weight: 3.48 Lbs
