4" x 2" Polyurethane on Aluminum Wheel Kingpinless Swivel Caster - 750 Lbs Capacity

$94.52

Part # P51042013P71

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

4" x 2" Polyurethane on Aluminum Wheel Kingpinless Swivel Caster - Part # P51042013P71

Polyurethane on Aluminum wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. Polyurethane on aluminum caster wheels are considered the premium polyurethane wheel. These caster wheels offer all the benefits of polyurethane on iron wheels, and also has the added benefit of being lighter, easier to roll, resistant to rust/corrosion, and have a mechanically bonded tread helping to prevent the tread from de-bonding from the core. These wheels can be used in most applications, but are not recommended for hot or cold applications.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements."

Specifications:

Capacity: 750 Lbs.	Mounting Plate: 4" x 4-1/2"

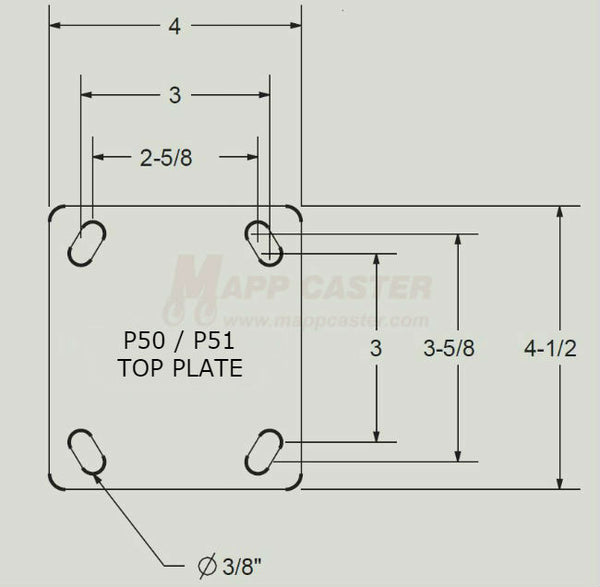

Wheel Diameter:4"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat	Overall Height:5-5/8"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Polyurethane on Aluminum	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 55 (+/-5)	Swivel Radius: 3-3/16"
Wheel Color: Blue	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -40˚F to 180˚F	Weight: 5.42 Lbs
Link to Replacement Wheel: 2WS38204	Link to Matching Rigid Caster: P50042013P72

Capacity: 750 lbs.

Wheel Diameter:4"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Polyurethane on Aluminum

Wheel Durometer:Shore D 55 (+/-5)

Overall Height:5-5/8"

Swivel Radius:3-3/16"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Blue

Temp Range:-40˚F to 180˚F

Weight:5.42 Lbs

Link to Replacement Wheel:2WS38204

Link to Matching Rigid Caster:P50042013P72
