4" x 2" Polyurethane on Aluminum Wheel Rigid Caster - 750 Lbs Capacity

Part # 1463P7B420R

Availablity: Usually ships in 24-48 hours Not Collection


4" x 2" Polyurethane on Aluminum Rigid Caster - Part # 1463P7B420R

Polyurethane on Aluminum wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. Polyurethane on aluminum caster wheels are considered the premium polyurethane wheel. These caster wheels offer all the benefits of polyurethane on iron wheels, and also has the added benefit of being lighter, easier to roll, resistant to rust/corrosion, and have a mechanically bonded tread helping to prevent the tread from de-bonding from the core. These wheels can be used in most applications, but are not recommended for hot or cold applications.

Specifications:

Load Capacity (lbs.): 750 Link to Matching Swivel Caster: 1463P7B420S

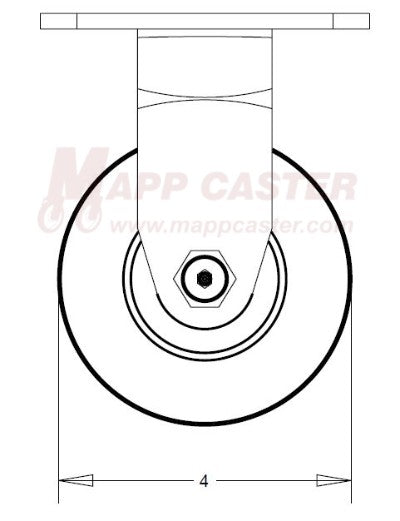

Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyurethane on Aluminum Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A

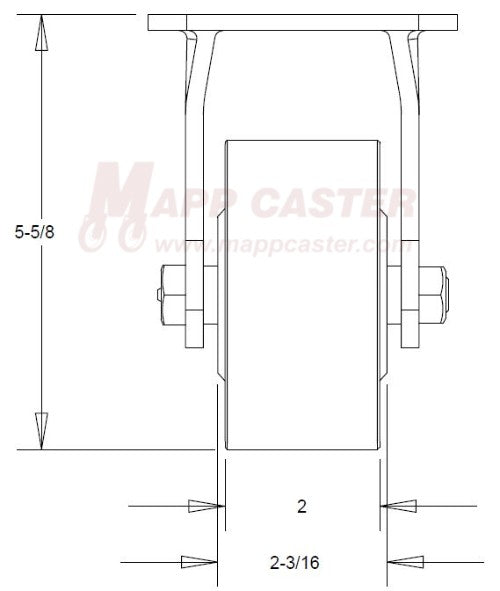

Overall Height: 5-5/8" Swivel Construction: N/A
Temp Range: -20 to 180F Mounting Plate: 4" x 4-1/2"
Wheel Durometer:  Shore D 55 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Blue  Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: 2WS38204 Weight: 4.75 Lbs

Questions & Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

PRODUCT DETAILS

4" x 2" Polyurethane on Aluminum Rigid Caster - Part # 1463P7B420R

Polyurethane on Aluminum wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. Polyurethane on aluminum caster wheels are considered the premium polyurethane wheel. These caster wheels offer all the benefits of polyurethane on iron wheels, and also has the added benefit of being lighter, easier to roll, resistant to rust/corrosion, and have a mechanically bonded tread helping to prevent the tread from de-bonding from the core. These wheels can be used in most applications, but are not recommended for hot or cold applications.

Specifications:

Load Capacity (lbs.): 750 Link to Matching Swivel Caster: 1463P7B420S
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyurethane on Aluminum Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 5-5/8" Swivel Construction: N/A
Temp Range: -20 to 180F Mounting Plate: 4" x 4-1/2"
Wheel Durometer:  Shore D 55 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Blue  Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: 2WS38204 Weight: 4.75 Lbs
