Home / All / 5" x 2" Cast Iron V-Groove Wheel Swivel Caster with Face Contact Brake - 900 Lbs Capacity

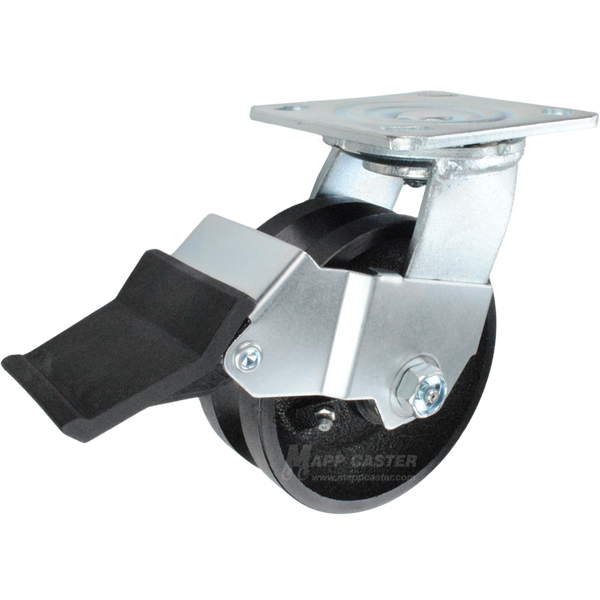

5" x 2" Cast Iron V-Groove Wheel Swivel Caster with Face Contact Brake - 900 Lbs Capacity

$46.69

Part # 146VIRB520SFCB

Availablity: Usually ships in 5-7 Business Days
+

5" x 2" Cast Iron V-Groove Wheel Swivel Caster with Face Contact Brake - Part # 146VIRB520SFCB

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Load Capacity (lbs.): 900

Link to Matching Rigid Caster: 146VIRB520R
Wheel Diameter: 5" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Options Swivel Radius: 6-3/4"
Overall Height: 6-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45°F to 180°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG520 Weight: 7.726 Lbs

PRODUCT DETAILS

5" x 2" Cast Iron V-Groove Wheel Swivel Caster with Face Contact Brake - Part # 146VIRB520SFCB

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Load Capacity (lbs.): 900

Link to Matching Rigid Caster: 146VIRB520R
Wheel Diameter: 5" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Options Swivel Radius: 6-3/4"
Overall Height: 6-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45°F to 180°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG520 Weight: 7.726 Lbs
